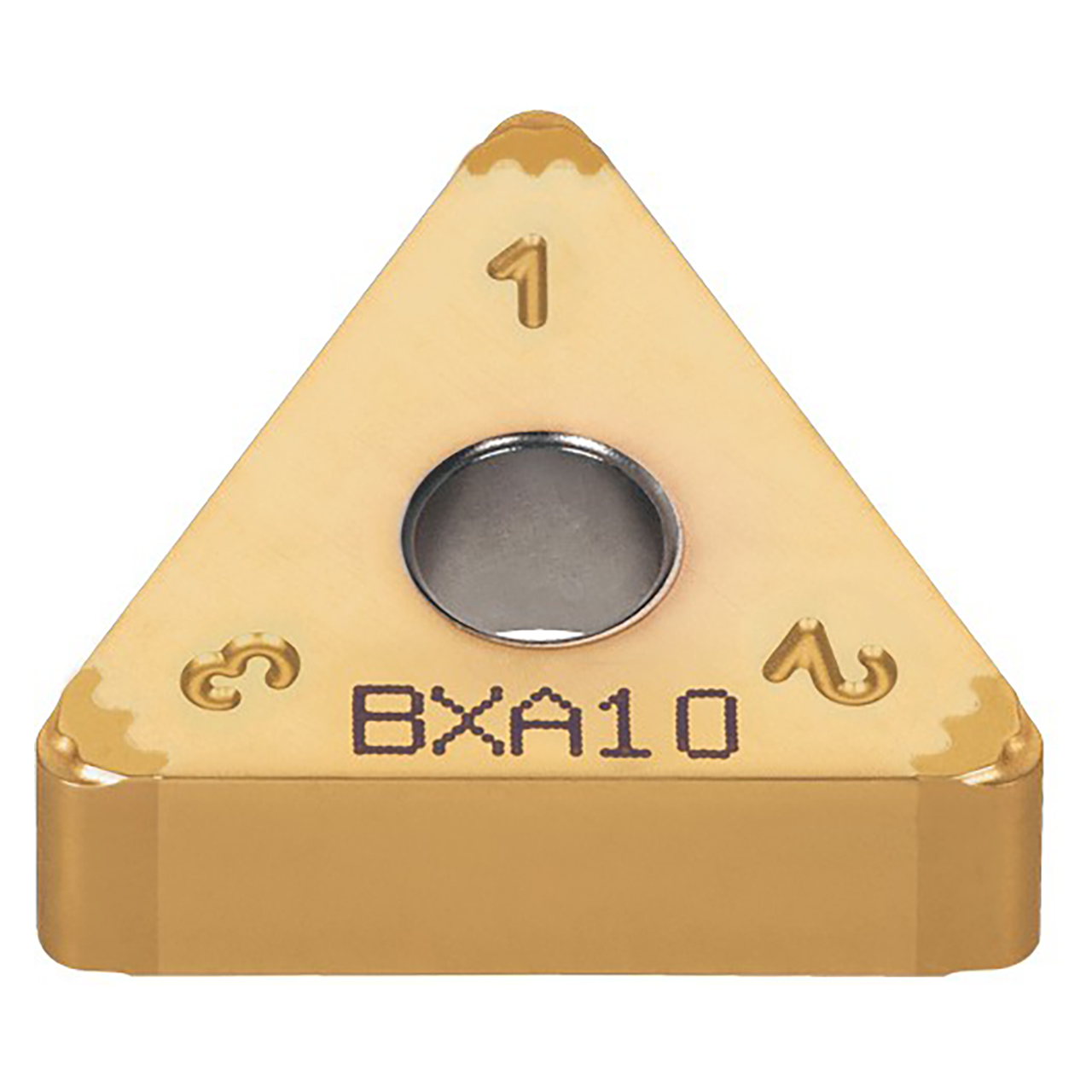

Negative relief angle, G class, triangular CBN insert with chipbreaker for finishing hardened steel, applied "WavyJoint" brazing technology.
| # MFG | 6795178 |
| Corner Radius (Inch) | 0.0472" |
| Cutting Edge Length (Inch) | 0.65" |
| Cutting Edge Effective Length (Inch) | 0.071" |
| Maximum Depth of Cut (Inch) | 0.0087" |
| Fixing Hole Diameter (Inch) | 0.15" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0098"/rev |
| Minimum Depth of Cut (Inch) | 0.0012" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Grade | BXA10 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | HP-Wavy |
| Body Material | Carbide |
