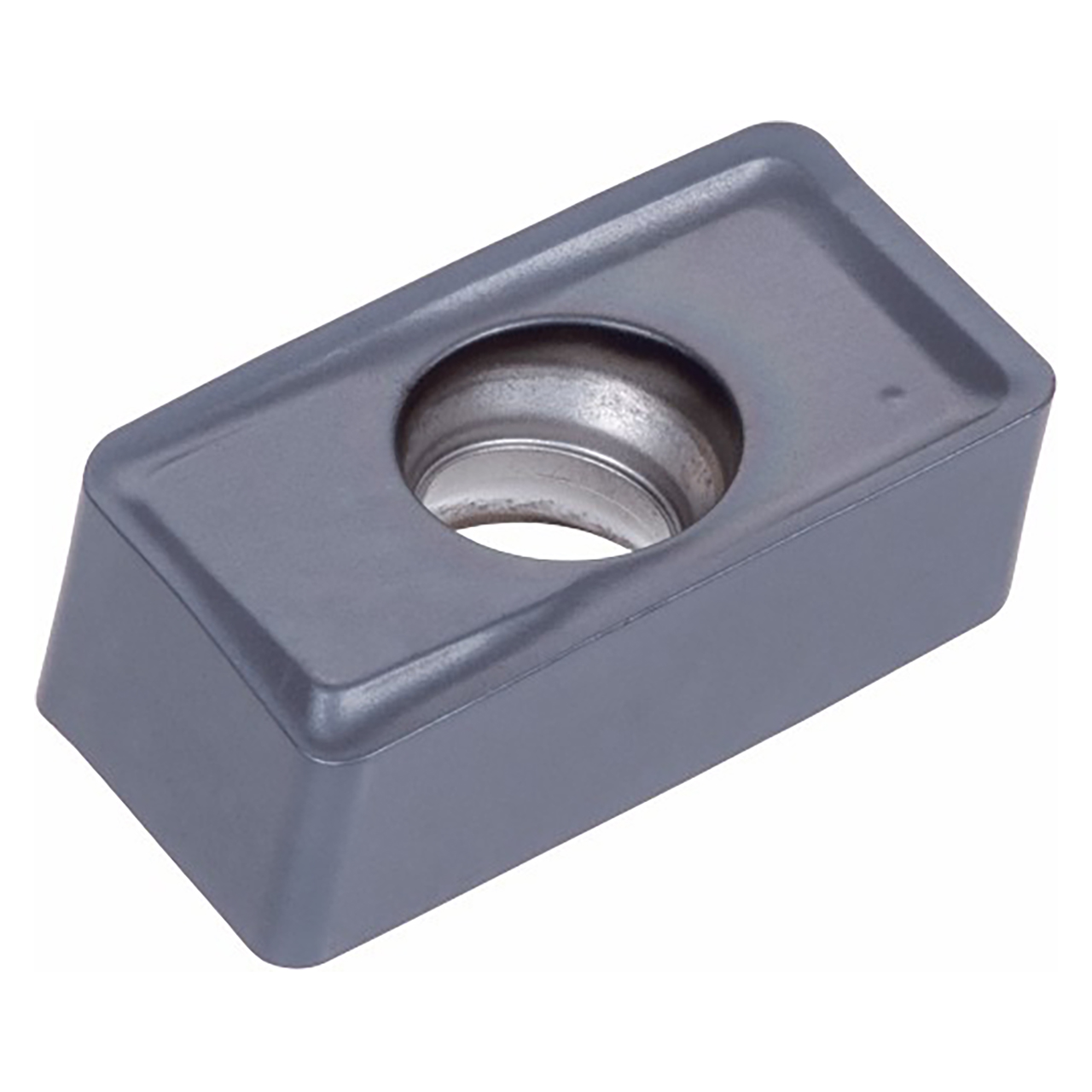

Tungaloy 6799036 | LXMU080304PER-MM AH3225 0.110" Thickness x 0.276" Depth of Cut Carbide Milling Insert

$21.93 $15.35
(You save $6.58)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Width (Inch):
13/64"
Width (Decimal Inch):
0.1970"
Width (mm):
5.00mm
interval quantity:
10
SKU:
23156390
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Double-sided insert with 2 edges and MM chipbreaker.


Product Specifications
# MFG6799036
Cutting Edge Effective Length (Inch)0.303"
Depth of Cut Maximum (Inch)0.276"
Insert Thickness (Inch)0.11"
Insert Width (Inch)0.197"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.0012"/tooth
Number of Cutting Edges2
Wiper Edge Length0.031"
ApplicationShoulder Milling
Body MaterialCarbide
GradeAH3225
Applicable MaterialSteel, Stainless Steel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Width (Inch):
13/64"
Width (Decimal Inch):
0.1970"
Width (mm):
5.00mm
interval quantity:
10
