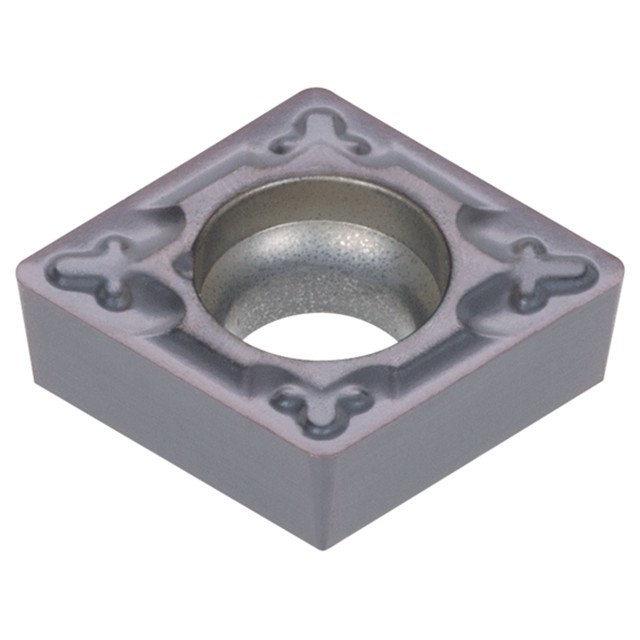

Tungaloy 6801275 | CCGT 21.50.5-01 J740 1/4" Circle Diameter x 0.094" Thickness x 0.008" Radius TiN Coated Carbide Indexable Turning Insert

$17.95 $12.57
(You save $5.38)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23018450
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 80 degree rhombic insert, for precision finishing.


Product Specifications
Manufacturer Part Number6801275
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.256"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0007"
Minimum Turning Feed (Inch)0.0012"/rev
CoatingTiN
Cutting Edge MaterialCarbide
GradeJ740
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker Type1
Major Clearance Angle7 Degree
Body MaterialCarbide
