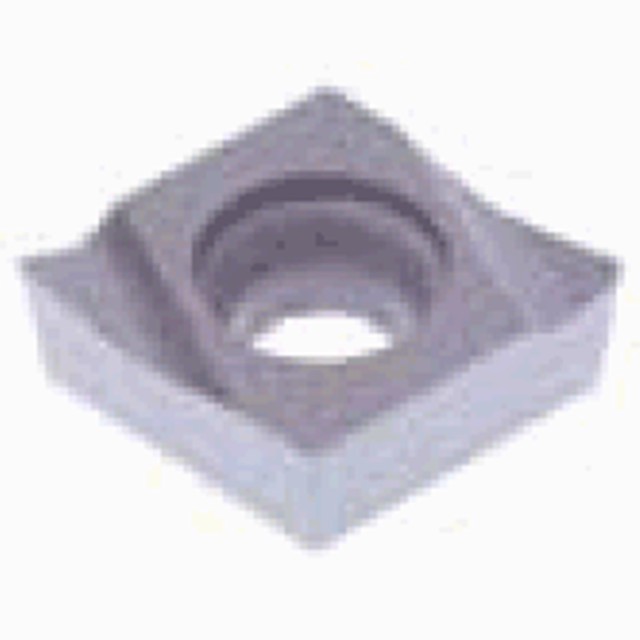

Positive 7 degree relief angle, G class, 80 degree rhombic insert, lead type chipbreaker for finishing to medium cutting.
Product Specifications
Manufacturer Part Number | 6801282 |
Corner Radius (Inch) | 0.008" |
Cutting Edge Length (Inch) | 0.256" |
Maximum Depth of Cut (Inch) | 0.0787" |
Fixing Hole Diameter (Inch) | 0.11" |
Inscribed Circle Diameter (Inch) | 1/4" |
Insert Thickness (Inch) | 0.094" |
Maximum Turning Feed (Inch) | 0.0059"/rev |
Minimum Depth of Cut (Inch) | 0.0393" |
Minimum Turning Feed (Inch) | 0.0012"/rev |
Cutting Edge Material | Carbide |
Grade | TH10 |
Tool Type | Turn Positive Inserts |
Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
Chip Breaker Type | LB |
Major Clearance Angle | 7 Degree |
Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
