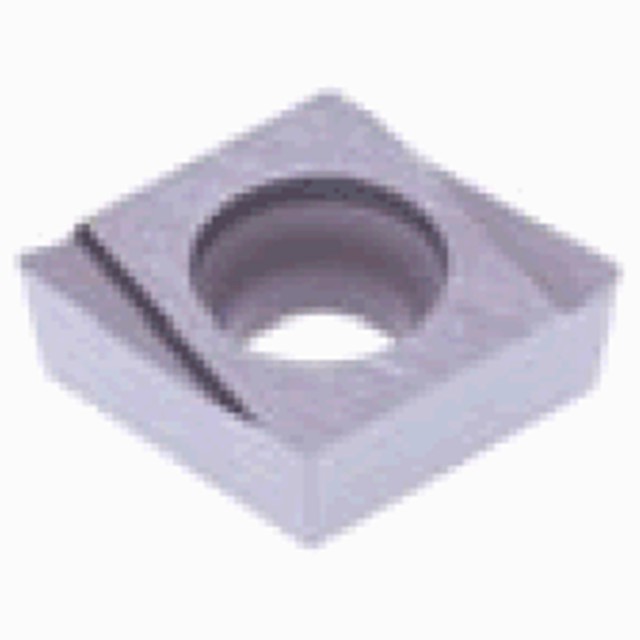

Tungaloy 6801341 | CCGT 32.51 L-W20 GH330 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius TiCNO Coated Carbide Indexable Turning Insert

$24.65 $17.26
(You save $7.39)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23132967
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 80 degree rhombic insert, lead type chipbreaker for finishing.


Product Specifications
Manufacturer Part Number6801341
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0012"/rev
CoatingTiCNO
Cutting Edge MaterialCarbide
GradeGH330
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker TypeW20
Major Clearance Angle7 Degree
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
