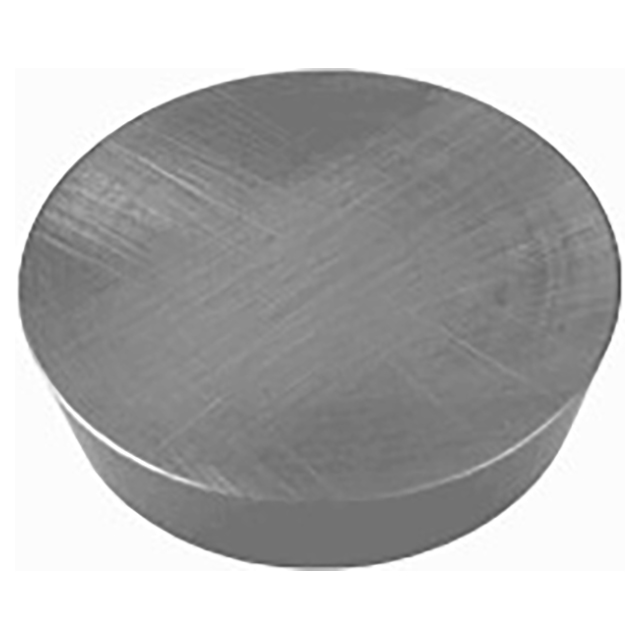

Flat-top button insert with 10mm radius.
Product Specifications
| # MFG | 6805875 |
| Depth of Cut Maximum (Inch) | 0.394" |
| Inscribed Circle Diameter (Inch) | 0.787" |
| Insert Thickness (Inch) | 0.187" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | UX30 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
UX30
Inscribed Circle (Inch):
25/32"
Inscribed Circle (Decimal Inch):
0.7870"
Inscribed Circle (mm):
19.99mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
