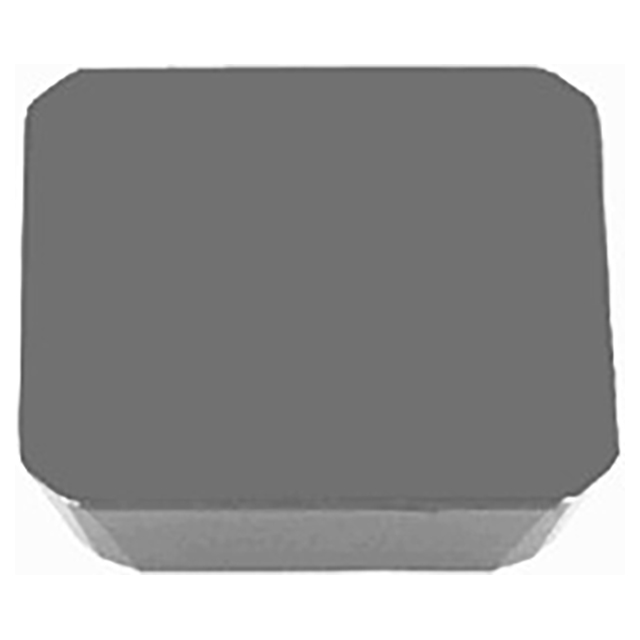

Flat-top square insert with 15 degree relief angle for 45 degree corner angle.
| # MFG | 6806224 |
| Depth of Cut Maximum (Inch) | 0.157" |
| Insert Thickness (Inch) | 1/8" |
| Insert Width (Inch) | 1/2" |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.047" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | UX30 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
