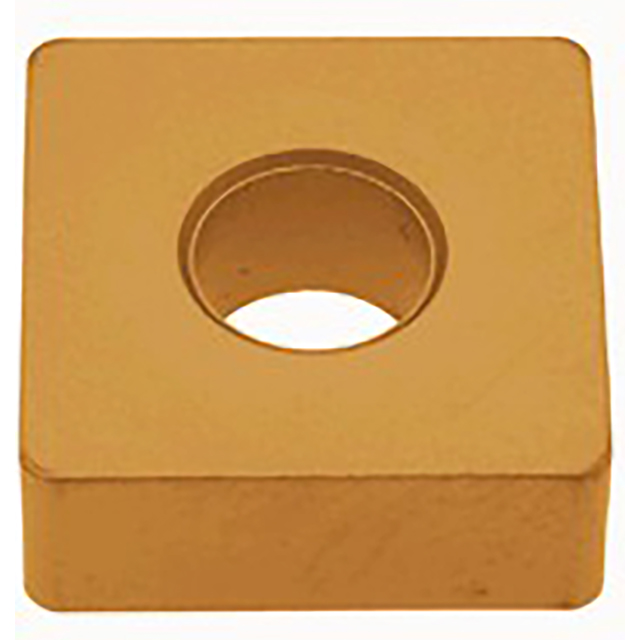

Negative relief angle, M/G class, square insert, without chipbreaker for finishing to medium cutting.
| # MFG | 6806452 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 3/8" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.15" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0003" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | Carbide |
| Grade | TH10 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
| Chip Breaker Type | FT |
| Body Material | Carbide |
