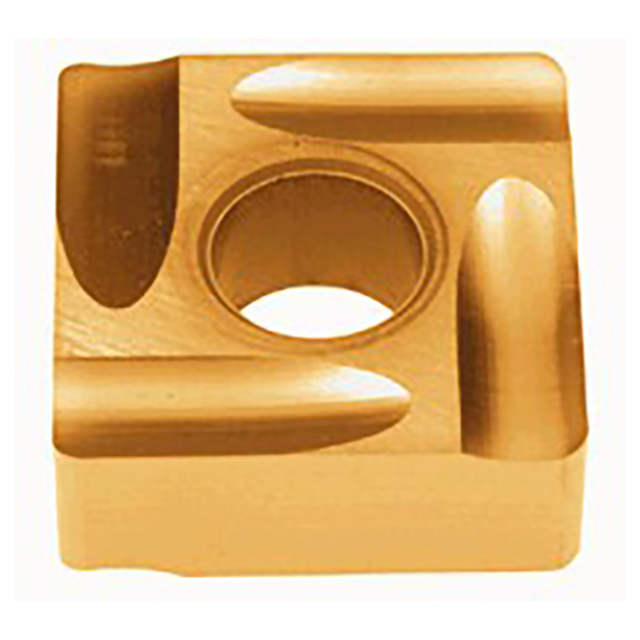

Negative relief angle, G class, square insert, for medium cutting.
| # MFG | 6806529 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 1/2" |
| Maximum Depth of Cut (Inch) | 0.1575" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0197"/rev |
| Minimum Depth of Cut (Inch) | 0.0197" |
| Minimum Turning Feed (Inch) | 0.0079"/rev |
| Coating | TiCNO |
| Cutting Edge Material | Carbide |
| Grade | GH110 |
| Tool Type | Turn Inserts AL, HTA Geometric |
| Applicable Material | Cast Iron, Non Ferrous Metals |
| Chip Breaker Type | P |
| Body Material | Carbide |
