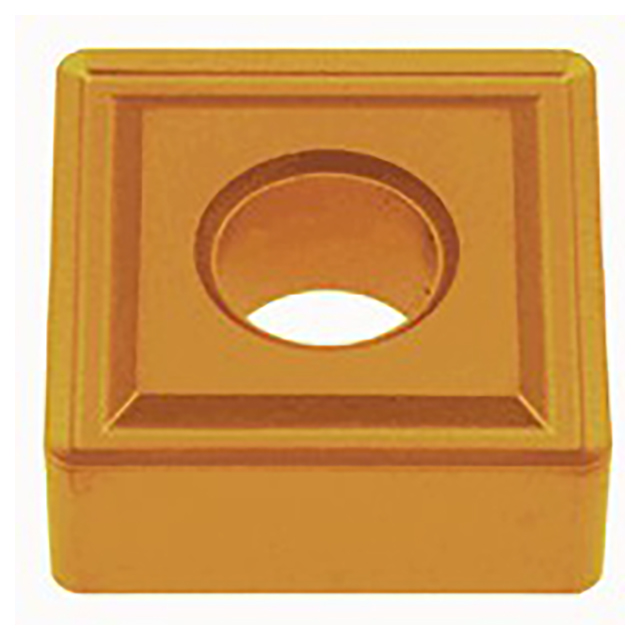

Negative relief angle, M class, square insert, for medium cutting of stainless steel etc.
| # MFG | 6806767 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 1/2" |
| Maximum Depth of Cut (Inch) | 0.1575" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0157"/rev |
| Minimum Depth of Cut (Inch) | 0.0393" |
| Minimum Turning Feed (Inch) | 0.0079"/rev |
| Cutting Edge Material | Carbide |
| Grade | KS20 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron, Hi Temp Alloys |
| Chip Breaker Type | SA |
| Body Material | Carbide |
