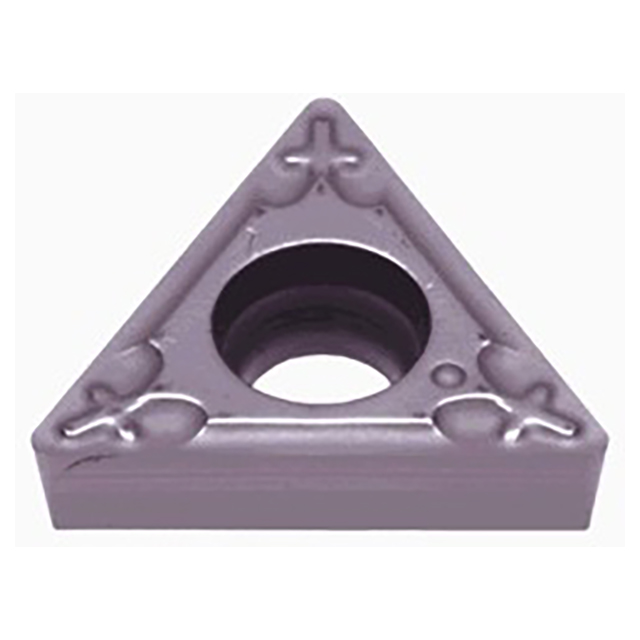

Positive 7 degree relief angle, G class, triangular insert, for precision finishing.
| # MFG | 6807714 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.65" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0059"/rev |
| Minimum Depth of Cut (Inch) | 0.0008" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | Cermet |
| Grade | NS520 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Cast Iron |
| Chip Breaker Type | 1 |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
