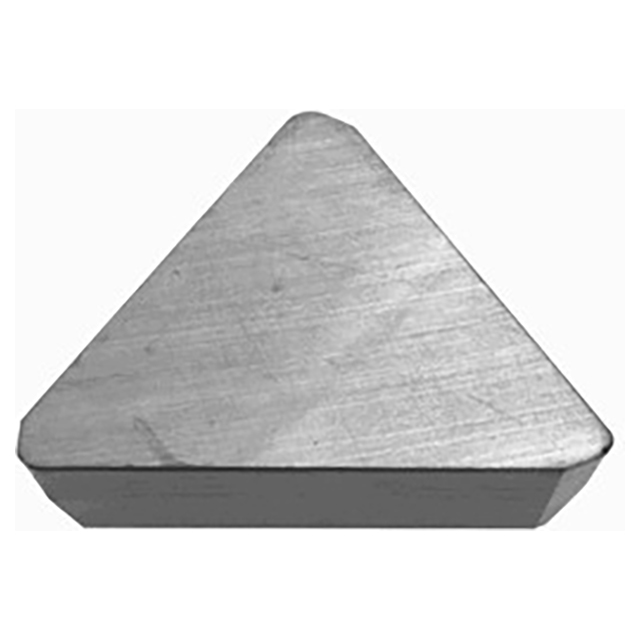

Flat-top triangle insert with 20 degree relief angle for shoulder milling.
Product Specifications
| # MFG | 6807899 |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.315" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Number of Cutting Edges | 3 |
| Wiper Edge Length | 0.039" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH330 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH330
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
interval quantity:
10
