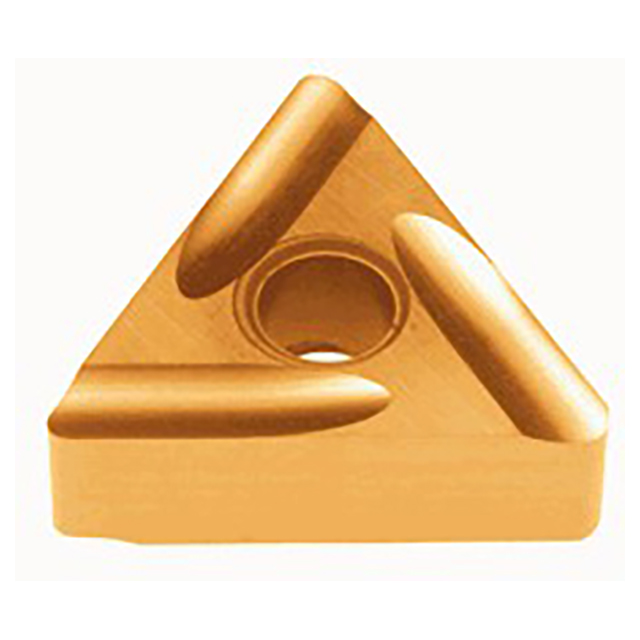

Negative relief angle, G class, triangular insert, for medium cutting.
Product Specifications
| # MFG | 6808156 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.65" |
| Fixing Hole Diameter (Inch) | 0.15" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.187" |
| Coating | TiCNO |
| Cutting Edge Material | Carbide |
| Grade | GH110 |
| Tool Type | Turn Inserts AL, HTA Geometric |
| Applicable Material | Cast Iron, Non Ferrous Metals |
| Chip Breaker Type | P |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0080"
interval quantity:
10
