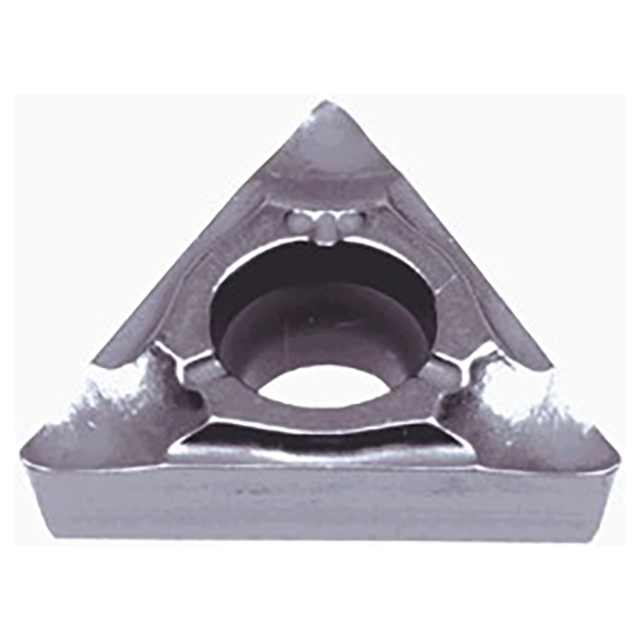

Positive 11 degree relief angle, G class, triangular insert, for finishing to medium cutting of stainless steel etc.
| # MFG | 6808953 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.543" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.134" |
| Inscribed Circle Diameter (Inch) | 0.313" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0078"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0031"/rev |
| Coating | TiCNO |
| Cutting Edge Material | Carbide |
| Grade | GH330 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel |
| Chip Breaker Type | SS |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
