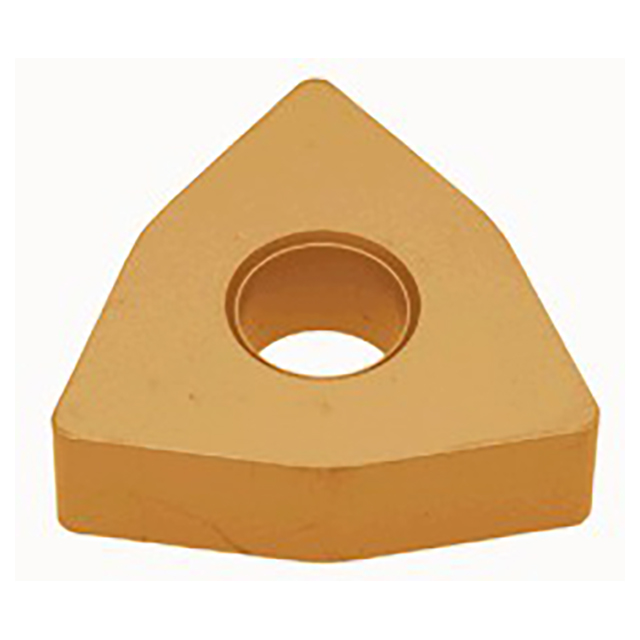

Negative relief angle, M/G class, trigon insert, without chipbreaker for finishing to medium cutting.
| # MFG | 6809594 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 0.343" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0236"/rev |
| Minimum Depth of Cut (Inch) | 0.0019" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | Ceramic |
| Grade | FX105 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron |
| Chip Breaker Type | FT-FX105 |
| Body Material | Carbide |
