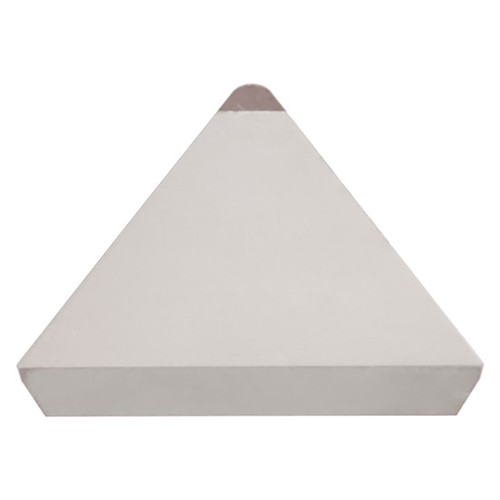

Positive 11 degree relief angle, G class, triangular CBN insert.
| # MFG | 6812283 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.65" |
| Cutting Edge Effective Length (Inch) | 0.079" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0078"/rev |
| Minimum Depth of Cut (Inch) | 0.0019" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Cutting Edge Material | PCBN |
| Grade | BX330 |
| Tool Type | Turn Ultra Hard Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | FT-CBN |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
