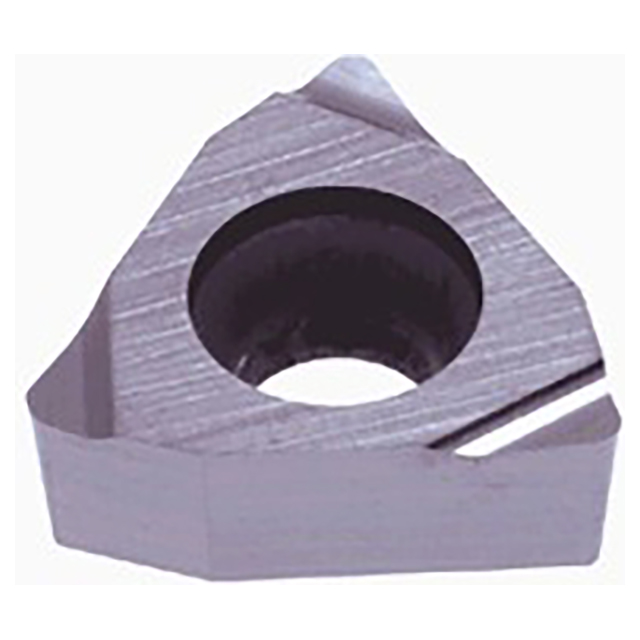

Positive 5 degree relief angle, G class, trigon insert, lead type chipbreaker for finishing.
| # MFG | 6815166 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.133" |
| Maximum Depth of Cut (Inch) | 0.0394" |
| Fixing Hole Diameter (Inch) | 0.091" |
| Inscribed Circle Diameter (Inch) | 0.156" |
| Insert Thickness (Inch) | 0.063" |
| Maximum Turning Feed (Inch) | 0.0059"/rev |
| Minimum Depth of Cut (Inch) | 0.0078" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Coating | TiCNO |
| Cutting Edge Material | Carbide |
| Grade | GH110 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Cast Iron, Non Ferrous Metals |
| Chip Breaker Type | W11 |
| Major Clearance Angle | 5 Degree |
| Body Material | Carbide |
