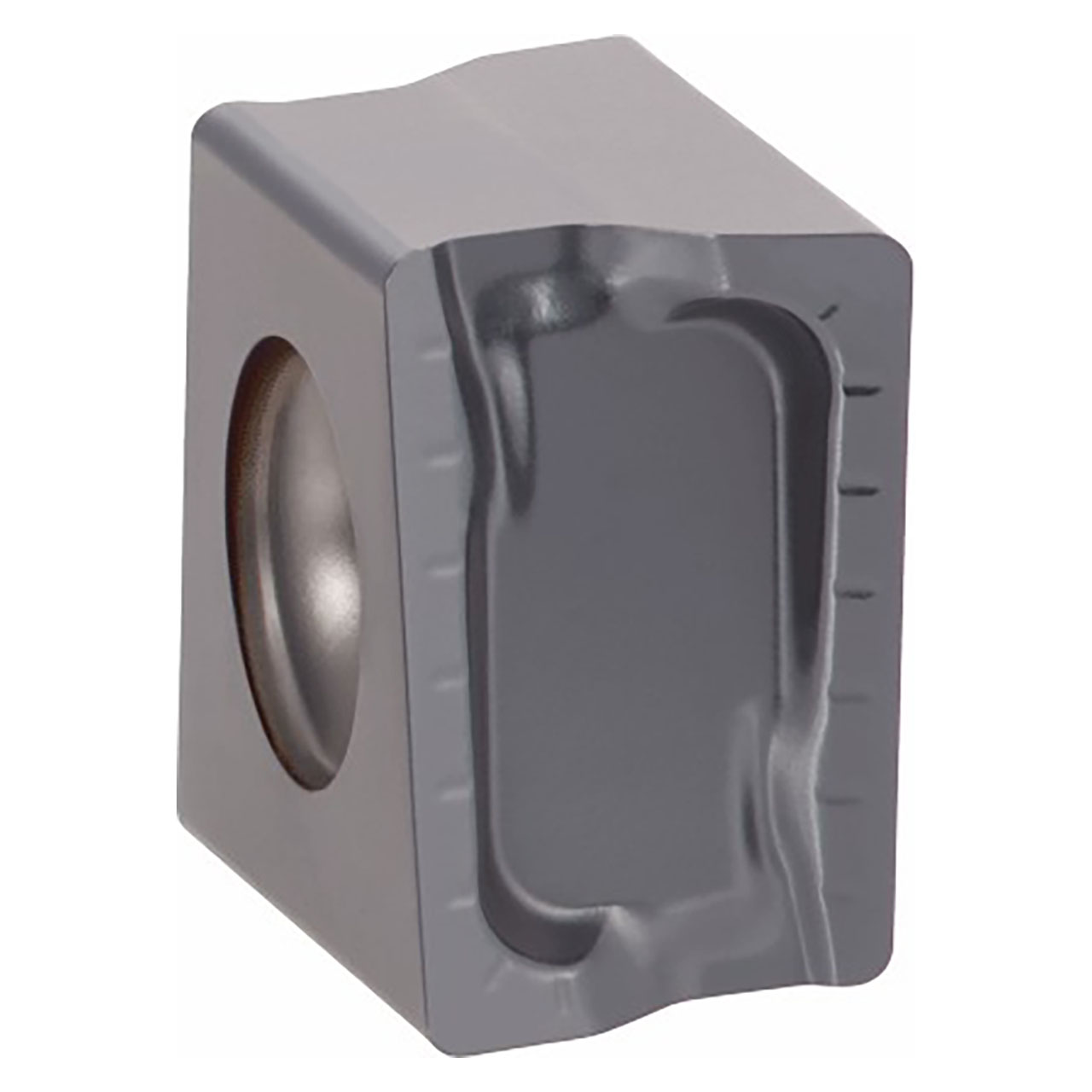

Tangentially mounted inserts with 4 cutting edges for slot milling cutters.
Product Specifications
| # MFG | 6817193 |
| Corner Radius (Inch) | 0.063" |
| Insert Length (Inch) | 0.528" |
| Insert Thickness (Inch) | 0.315" |
| Insert Width (Inch) | 1/2" |
| Number of Cutting Edges | 4 |
| Application | Slot Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
17/32"
Length (Decimal Inch):
0.5280"
Length (mm):
13.41mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3150"
Thickness (mm):
8.00mm
