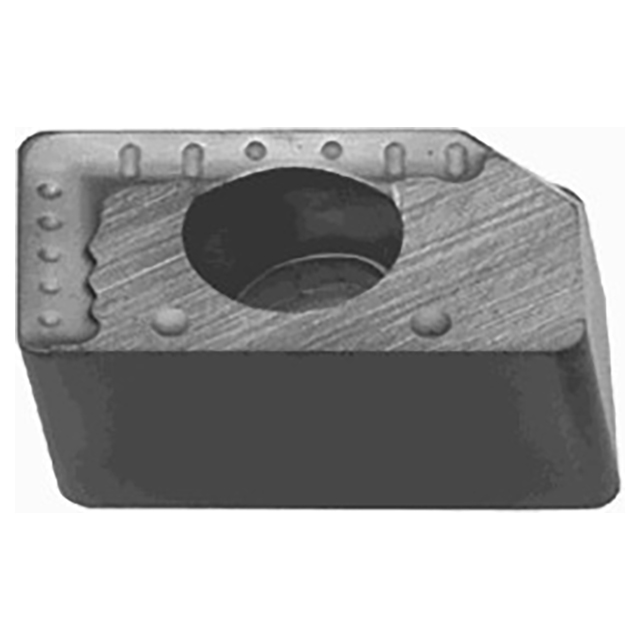

Unique shape insert for both central and peripheral edge.
Product Specifications
| # MFG | 6820782 |
| Cutting Edge Effective Length (Inch) | 0.417" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.354" |
| Insert Length (Inch) | 0.417" |
| Insert Thickness (Inch) | 0.138" |
| Insert Width (Inch) | 0.268" |
| Number of Cutting Edges | 2 |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH140 |
| Cutting Edge Material | Carbide |
| Applicable Material | Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH140
Finish/Coating:
TiAlN
Width (Inch):
17/64"
Width (Decimal Inch):
0.2680"
Width (mm):
6.81mm
Length (Inch):
27/64"
Length (Decimal Inch):
0.4170"
Length (mm):
10.59mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1380"
Thickness (mm):
3.51mm
interval quantity:
10
