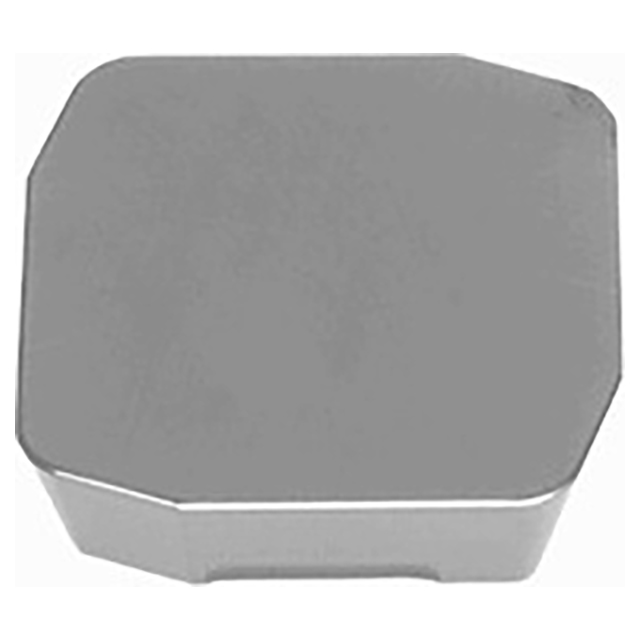

Square insert for super high feed face milling.
Product Specifications
| # MFG | 6821090 |
| Depth of Cut Maximum (Inch) | 0.118" |
| Insert Length (Inch) | 5/8" |
| Insert Thickness (Inch) | 0.187" |
| Insert Width (Inch) | 5/8" |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.146" |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
5/8"
Width (Decimal Inch):
0.6300"
Width (mm):
16.00mm
Length (Inch):
5/8"
Length (Decimal Inch):
0.6300"
Length (mm):
15.88mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
