Tungaloy 6821502 | SEEN42AGTN NS740 1/8" Thickness x 0.157" Depth of Cut Cermet Milling Insert

$14.75 $9.59
(You save $5.16)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
NS740
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
interval quantity:
10
SKU:
23135987
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

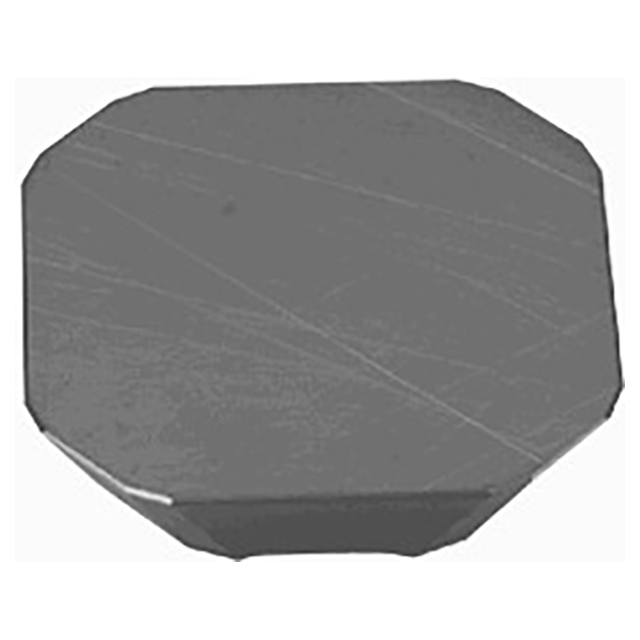

Flat-top square insert with 20 degree relief angle for 45 degree corner angle.


Product Specifications
# MFG6821502
Depth of Cut Maximum (Inch)0.157"
Insert Thickness (Inch)1/8"
Insert Width (Inch)1/2"
Number of Cutting Edges4
Wiper Edge Length0.094"
ApplicationFace Milling
Body MaterialCarbide
GradeNS740
Cutting Edge MaterialCermet
Applicable MaterialSteel, Stainless Steel
