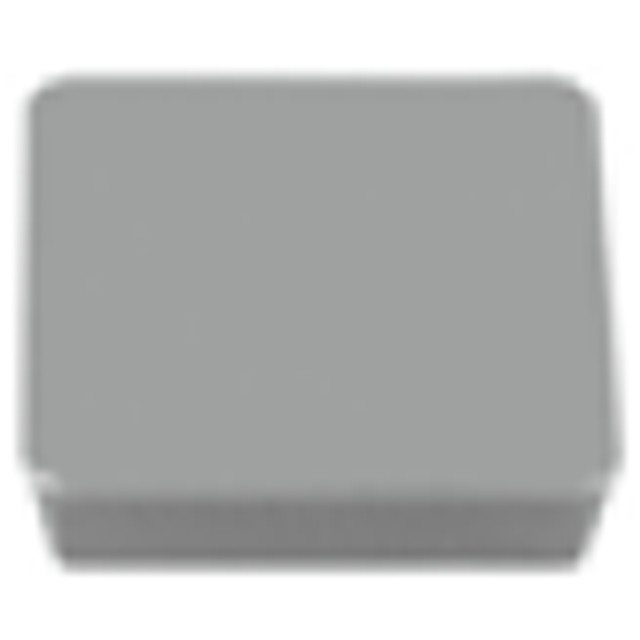

Tungaloy 6821523 | SPEN1203EDTR NS740 1/8" Thickness x 1/2" Insert Length Cermet Milling Insert

$13.60 $9.52
(You save $4.08)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
NS740
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
SKU:
23135996
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Flat-top square insert with 11 degree relief angle for 75 degree corner angle.


Product Specifications
Manufacturer Part Number6821523
Depth of Cut Maximum (Inch)0.276"
Insert Length (Inch)1/2"
Insert Thickness (Inch)1/8"
Insert Width (Inch)1/2"
Number of Cutting Edges4
Wiper Edge Length0.055"
ApplicationFace Milling
Body MaterialCarbide
GradeNS740
Cutting Edge MaterialCermet
Applicable MaterialSteel, Stainless Steel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
NS740
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
