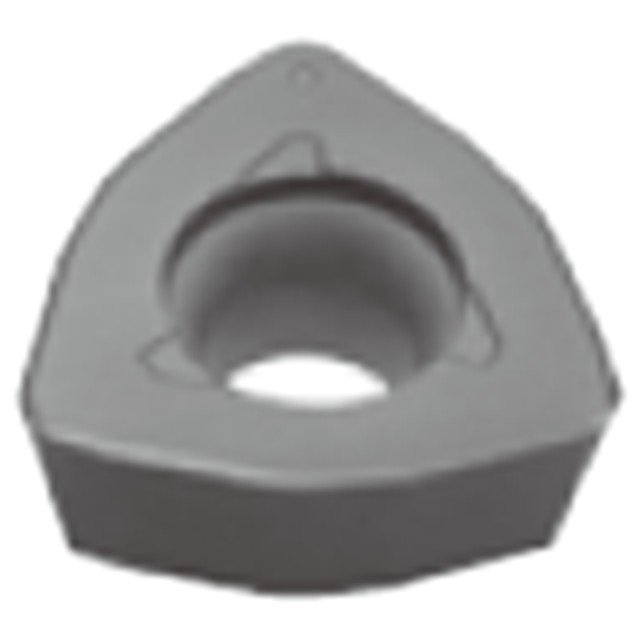

Trigon insert with MH chipbreaker for heavy milling.
Product Specifications
| Manufacturer Part Number | 6821763 |
| Cutting Edge Effective Length (Inch) | 0.236" |
| Corner Radius (Inch) | 0.059" |
| Depth of Cut Maximum (Inch) | 0.059" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.165" |
| Number of Cutting Edges | 3 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1650"
Thickness (mm):
4.19mm
