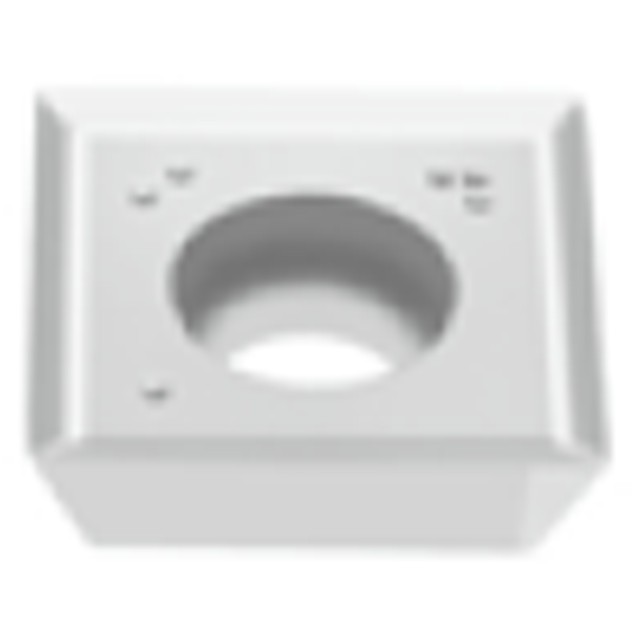

Tungaloy 6822218 | SEGT12X4ZEFR-AJ KS05F 0.157" Thickness x 0.315" Depth of Cut Carbide Milling Insert

$33.55 $23.49
(You save $10.06)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS05F
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23023463
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Square insert with "AJ" chipbreaker for aluminum machining.


Product Specifications
Manufacturer Part Number6822218
Cutting Edge Effective Length (Inch)1/2"
Depth of Cut Maximum (Inch)0.315"
Insert Thickness (Inch)0.157"
Insert Width (Inch)1/2"
Maximum Feed per Tooth0.0079"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.071"
ApplicationFace Milling
Body MaterialCarbide
GradeKS05F
Cutting Edge MaterialCarbide
Applicable MaterialCast Iron, Non Ferrous Metals, Hi Temp Alloys
