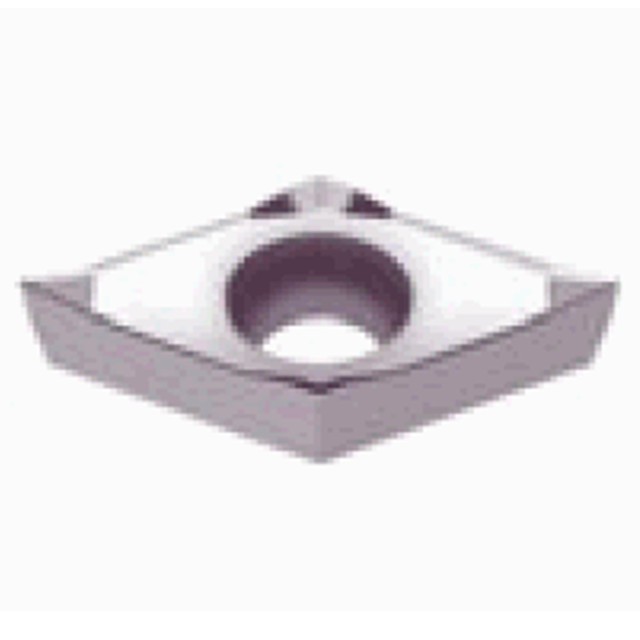

Tungaloy 6822282 | DCGT 32.51 AL KS05F 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$21.25 $14.88
(You save $6.37)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23019985
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 55 degree rhombic insert, for aluminum cutting.


Product Specifications
Manufacturer Part Number6822282
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.457"
Maximum Depth of Cut (Inch)0.1969"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0196"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
Cutting Edge MaterialCarbide
GradeKS05F
Tool TypeTurn Inserts AL, HTA Geometric
Applicable MaterialCast Iron, Non Ferrous Metals, Hi Temp Alloys
Chip Breaker TypeAL
Major Clearance Angle7 Degree
Body MaterialCarbide
