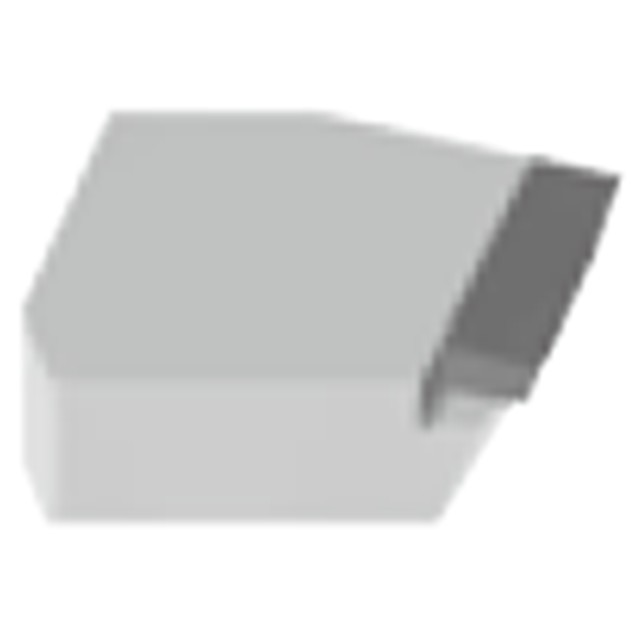

Tungaloy 6822363 | YDEN0905PDFR-BD DX140 0.224" Thickness x 0.598" Insert Length Polycrystalline Diamond Milling Insert

$247.20 $227.42
(You save $19.78)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DX140
Width (Inch):
31/64"
Width (Decimal Inch):
0.4880"
Width (mm):
12.40mm
Length (Inch):
19/32"
Length (Decimal Inch):
0.5980"
Length (mm):
15.19mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2240"
Thickness (mm):
5.69mm
interval quantity:
1
SKU:
23136262
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

PCD deburring wiper insert for D/EPD09 milling cutter.


Product Specifications
Manufacturer Part Number6822363
Depth of Cut Maximum (Inch)0.02"
Insert Length (Inch)0.598"
Insert Thickness (Inch)0.224"
Insert Width (Inch)0.488"
Number of Cutting Edges1
Wiper Edge Length0.177"
ApplicationShoulder Milling
Body MaterialCarbide
GradeDX140
Cutting Edge MaterialPCD
Applicable MaterialNon Ferrous Metals
