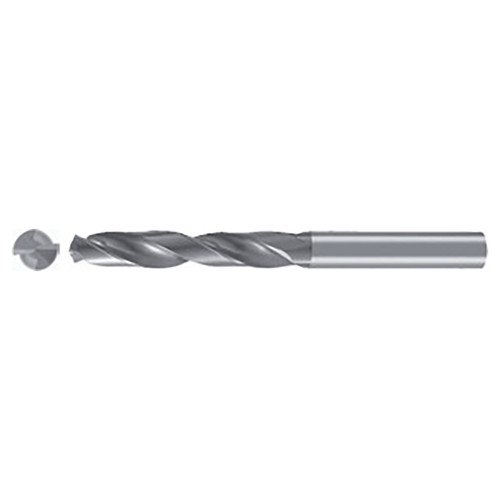

GigaPowerDrill series without coolant hole, L/D=3.
Product Specifications
| # MFG | 6822481 |
| Drill Bit Size/Cutting Diameter (mm) | 10.3mm |
| Length Chip Flute (mm) | 66mm |
| Overall Length (mm) | 112mm |
| Point Length (mm) | 1.87mm |
| Shank Length (mm) | 46mm |
| Usable Length (mm) | 32.8mm |
| Connection Diameter Machine Side (mm) | 10.3mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | AH180 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Finish/Coating:
TiAlN
interval quantity:
1
