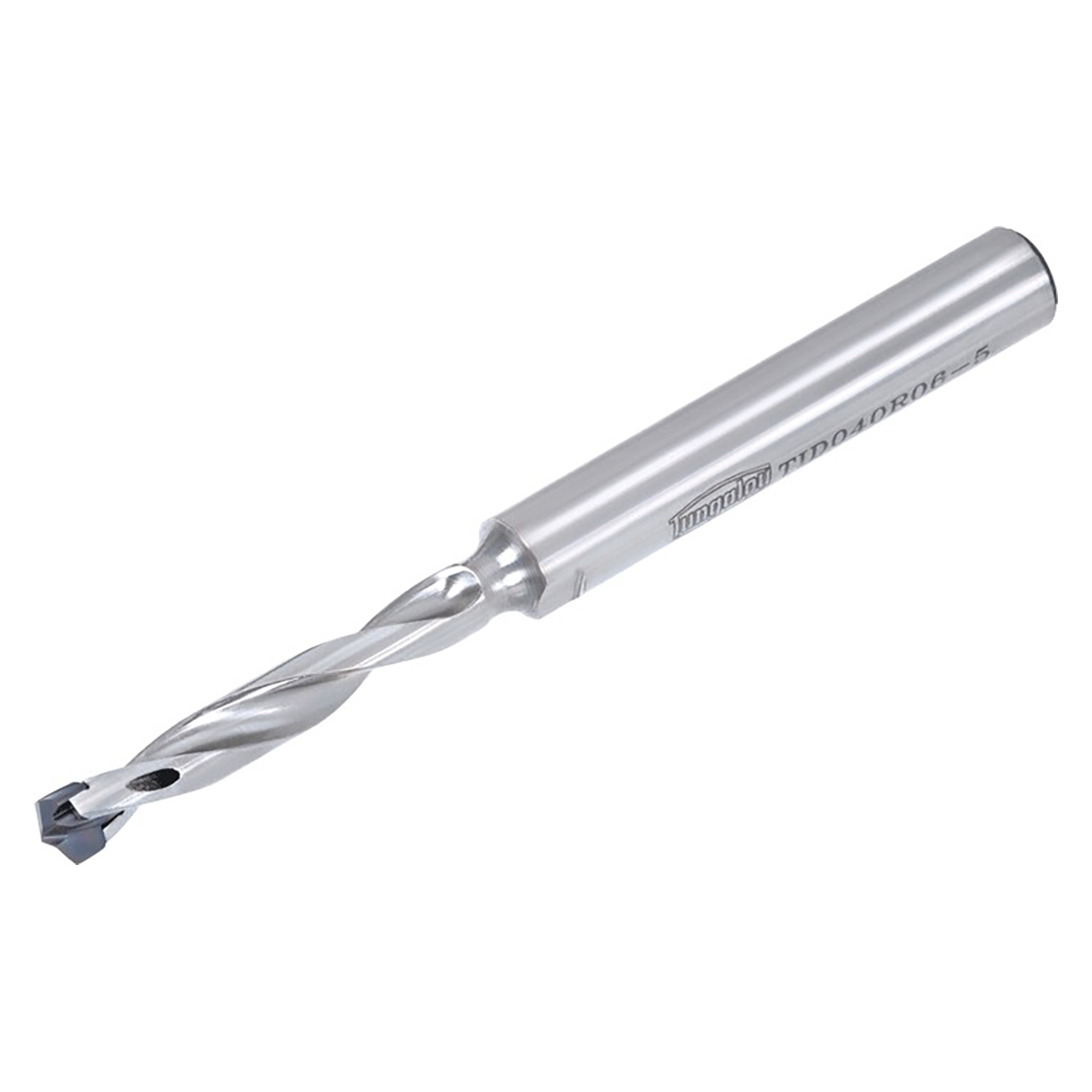

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 5.9 mm |
| Cutting Diameter Minimum (mm.) | 5.5 mm |
| Connection Diameter Machine Side (mm) | 12 mm |
| Overall Length (mm) | 74.15mm |
| Point Length (mm) | 1.27 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 21 mm |
| Insert Seat Size Code (SSC) | 6.5 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.2323"
Minimum Cutting Diameter (Decimal Inch):
0.2165"
Body Material:
Steel
Overall Length (Decimal Inch):
2.9190"
Point Length (Decimal Inch):
0.0320"
Shank Length (Decimal Inch):
1.3780"
Usable Length (Decimal Inch):
1.1140"
interval quantity:
1
