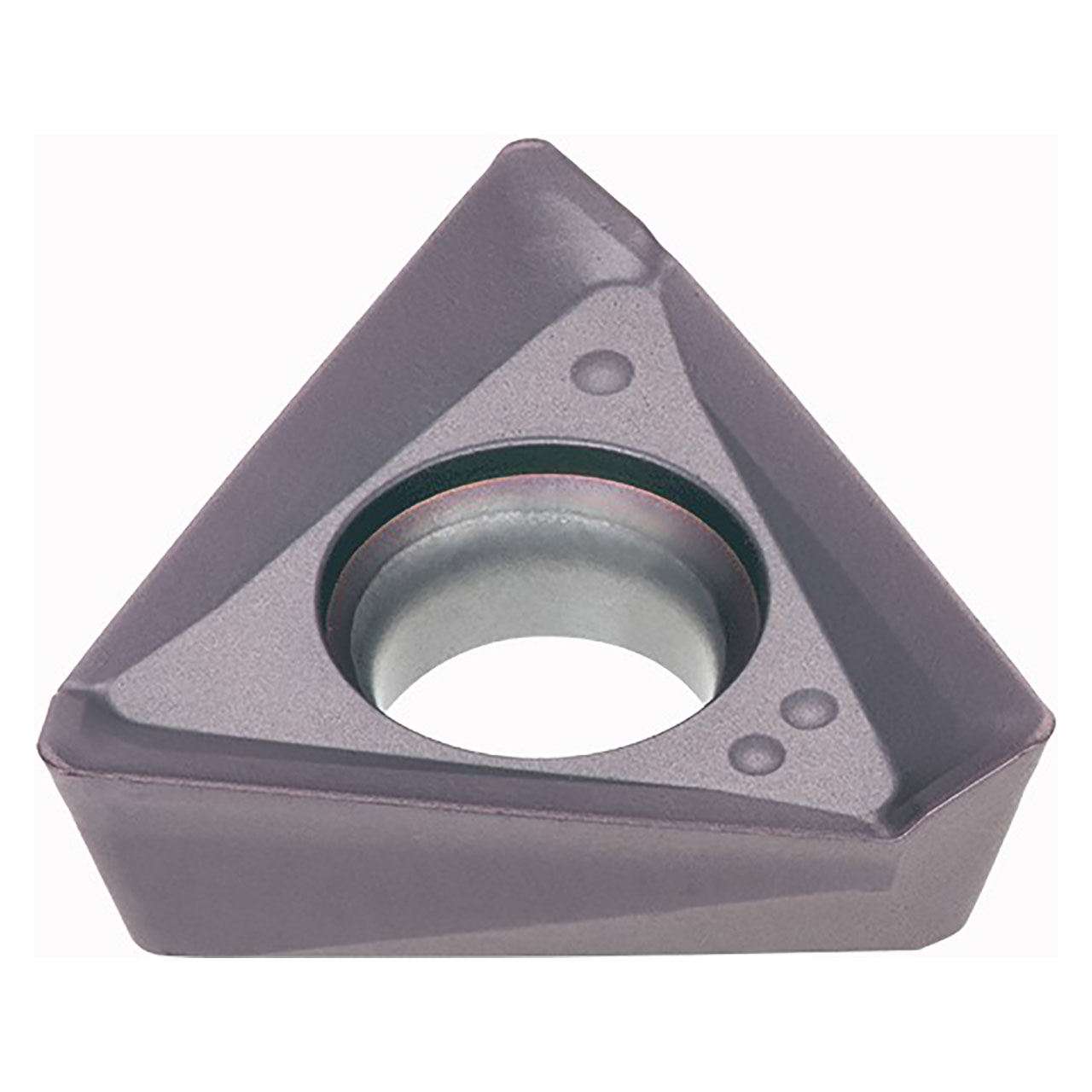

High performance inserts with MJ chipbreaker for general purpose.
Product Specifications
| # MFG | 6823995 |
| Cutting Edge Effective Length (Inch) | 0.618" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.591" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.236" |
| Maximum Feed per Tooth | 0.0098"/tooth |
| Minimum Feed per Tooth | 0.003"/tooth |
| Number of Cutting Edges | 3 |
| Wiper Edge Length | 0.075" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | AH3225 |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2360"
Thickness (mm):
5.99mm
interval quantity:
10
