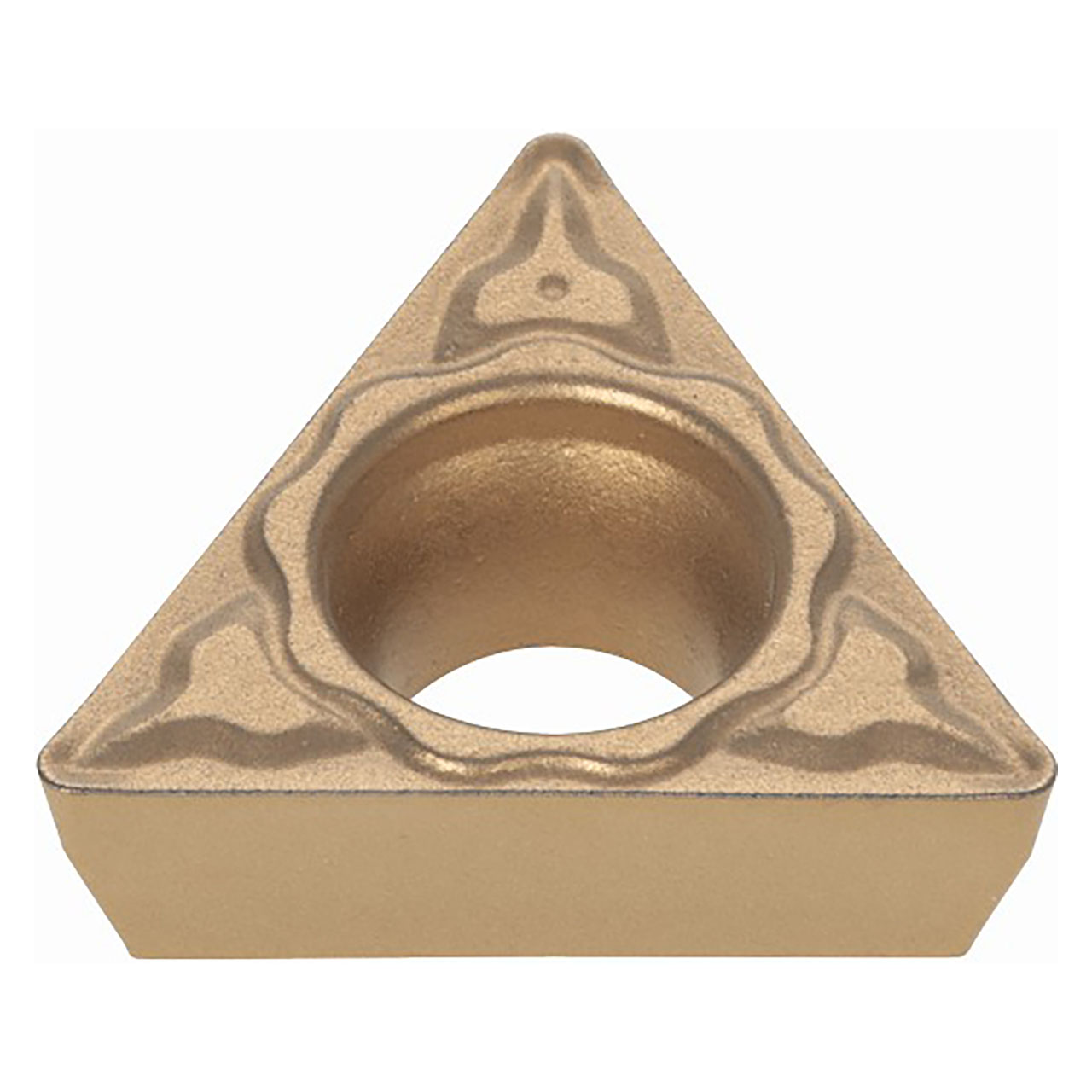

Positive 11 degree relief angle, M class, triangular inserts for finishing to medium cutting.
| # MFG | 6825797 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.433" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.134" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0091"/rev |
| Minimum Depth of Cut (Inch) | 0.0098" |
| Minimum Turning Feed (Inch) | 0.0024"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | AH8015 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Stainless Steel, Hard Materials, Hi Temp Alloys |
| Chip Breaker Type | TM |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
