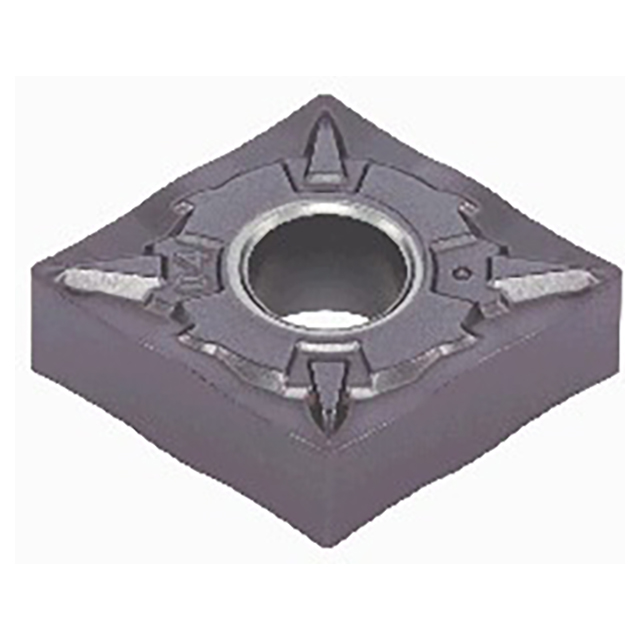

Tungaloy 6826364 | CNMG 322 SF AH630 3/8" Circle Diameter x 1/8" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$9.45 $6.62
(You save $2.83)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
interval quantity:
10
SKU:
23136382
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, 80 degree rhombic insert, for finishing of stainless steel.


Product Specifications
# MFG6826364
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0984"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0177"/rev
Minimum Depth of Cut (Inch)0.0314"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH630
Tool TypeTurn Negative Inserts
Applicable MaterialStainless Steel
Chip Breaker TypeSF
Body MaterialCarbide
