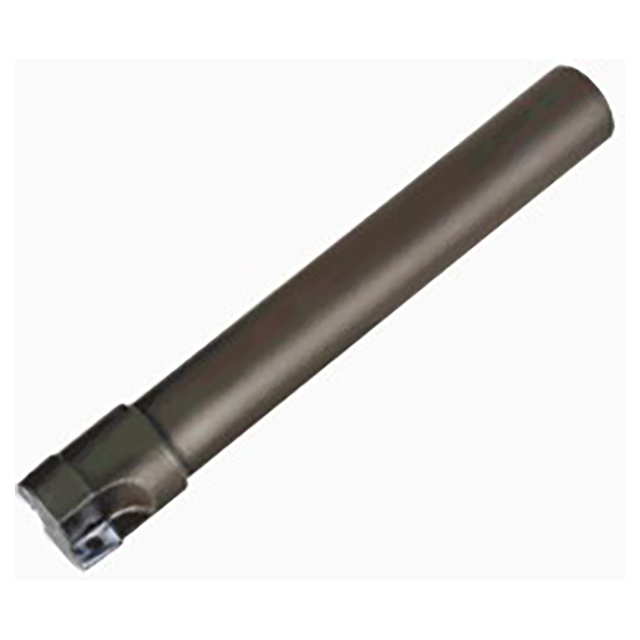

High precision shoulder square endmills with ASMT/ASGT11inserts.
Product Specifications
| # MFG | 6829500 |
| Connection Diameter Machine Side (Inch) | 3/4" |
| Cutting Diameter (Inch) | 3/4" |
| Maximum Cutting Diameter (Inch) | 3/4" |
| Cutting Item Count | 2 |
| Maximum Depth of Cut (Inch) | 0.417" |
| Functional Length (Inch) | 7-1/4" |
| Head Length (Inch) | 2" |
| Overall Length (Inch) | 7-1/4" |
| Shank Length (Inch) | 5-1/4" |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Indexable Endmills |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Inch):
3/4"
Body Material:
Steel
Maximum Depth of Cut (Decimal Inch):
0.4170"
Head Length (Inch):
2"
Head Length (Decimal Inch):
2.0000"
Overall Length (Inch):
7-1/4"
Shank Length (Inch):
5-1/4"
Shank Type:
Round
interval quantity:
1
