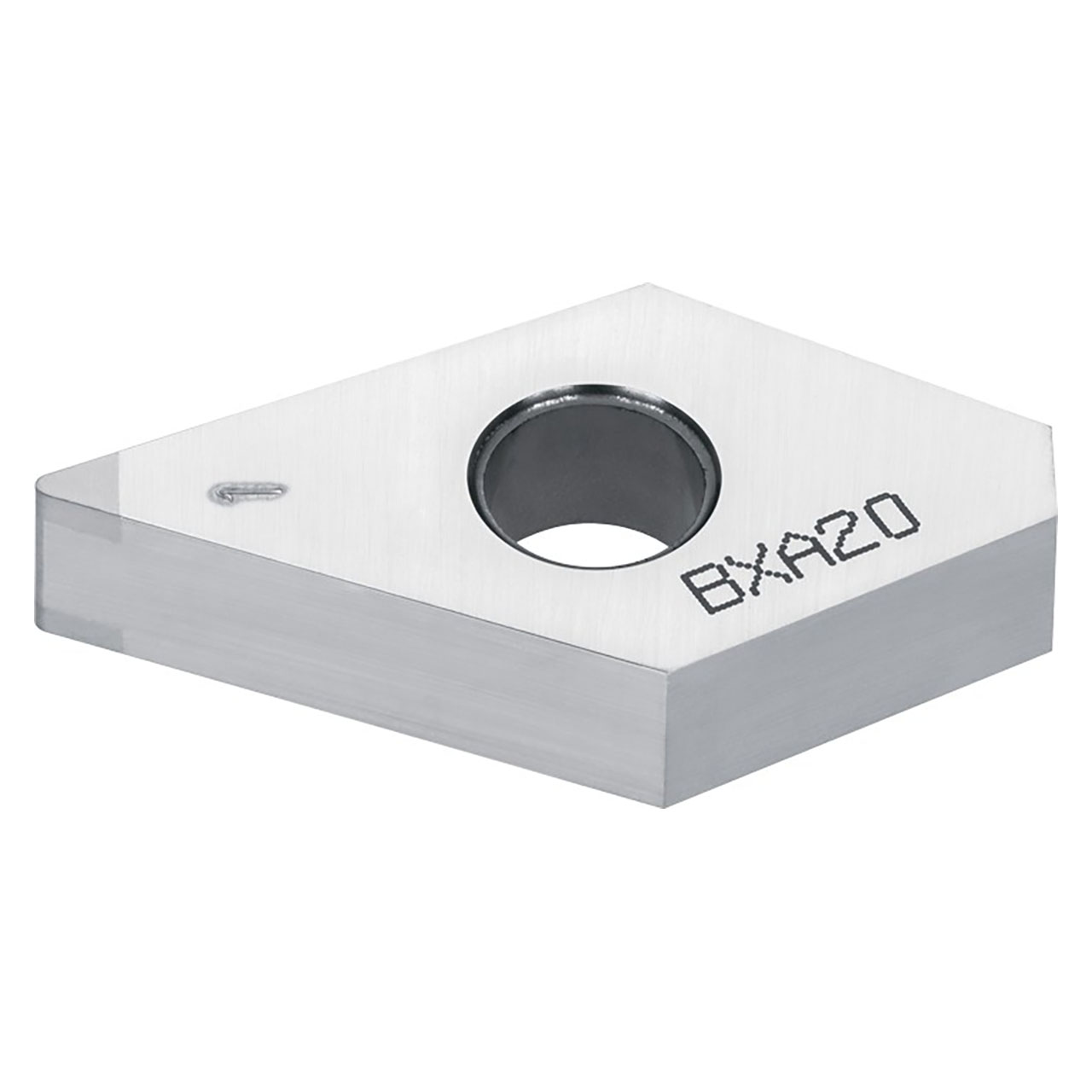

Tungaloy 6838387 | 2QP-FNGA 443-L BXA20 1/2" Circle Diameter x 1/4" Thickness x 0.047" Radius Polycrystalline Cubic Boron Nitride Indexable Turning Insert

$71.50
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
1/4"
Corner Radius (Decimal Inch):
0.0470"
interval quantity:
1
SKU:
23157032
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Negative relief angle, G class CBN insert with corner angle 45 degree for existing toolholder carrying DN**43 insert.


Product Specifications
# MFG6838387
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.61"
Cutting Edge Effective Length (Inch)0.13"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)1/4"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.002"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialPCBN
GradeBXA20
Tool TypeTurn Negative Inserts
Applicable MaterialHard Materials
Chip Breaker TypeL-CBN
Body MaterialCarbide
