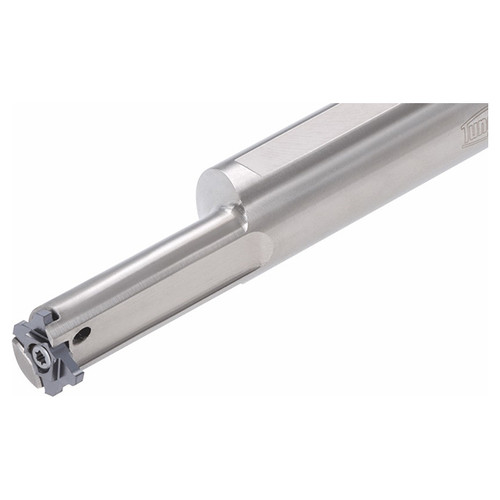

Internal grooving toolholder.
Product Specifications
| Manufacturer Part Number | 6842855 |
| Connection Diameter Machine Side (Inch) | 1/2" |
| Cutting Width Maximum (Inch) | 0.118" |
| Cutting Width Minimum (Inch) | 0.059" |
| Functional Length (Inch) | 4.000" |
| Functional Width (Inch) | 0.339" |
| Head Length (Inch) | 0.984" |
| Minimum Bore Diameter (Inch) | 0.438" |
| Shank Height (Inch) | 0.475" |
| Cutting Direction | Left Hand |
| Tool Type | Indexable Turn & Groove Tools |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/16"
Minimum Groove Width (Decimal Inch):
0.0590"
Minimum Groove Width (mm):
1.50mm
Maximum Groove Width (Inch):
1/8"
Maximum Groove Width (Decimal Inch):
0.1180"
Maximum Groove Width (mm):
3.00mm
Toolholder Type:
Internal Grooving
Shank Height (Inch):
15/32"
Shank Height (Decimal Inch):
0.4750"
Shank Height (mm):
12.07mm
interval quantity:
1
