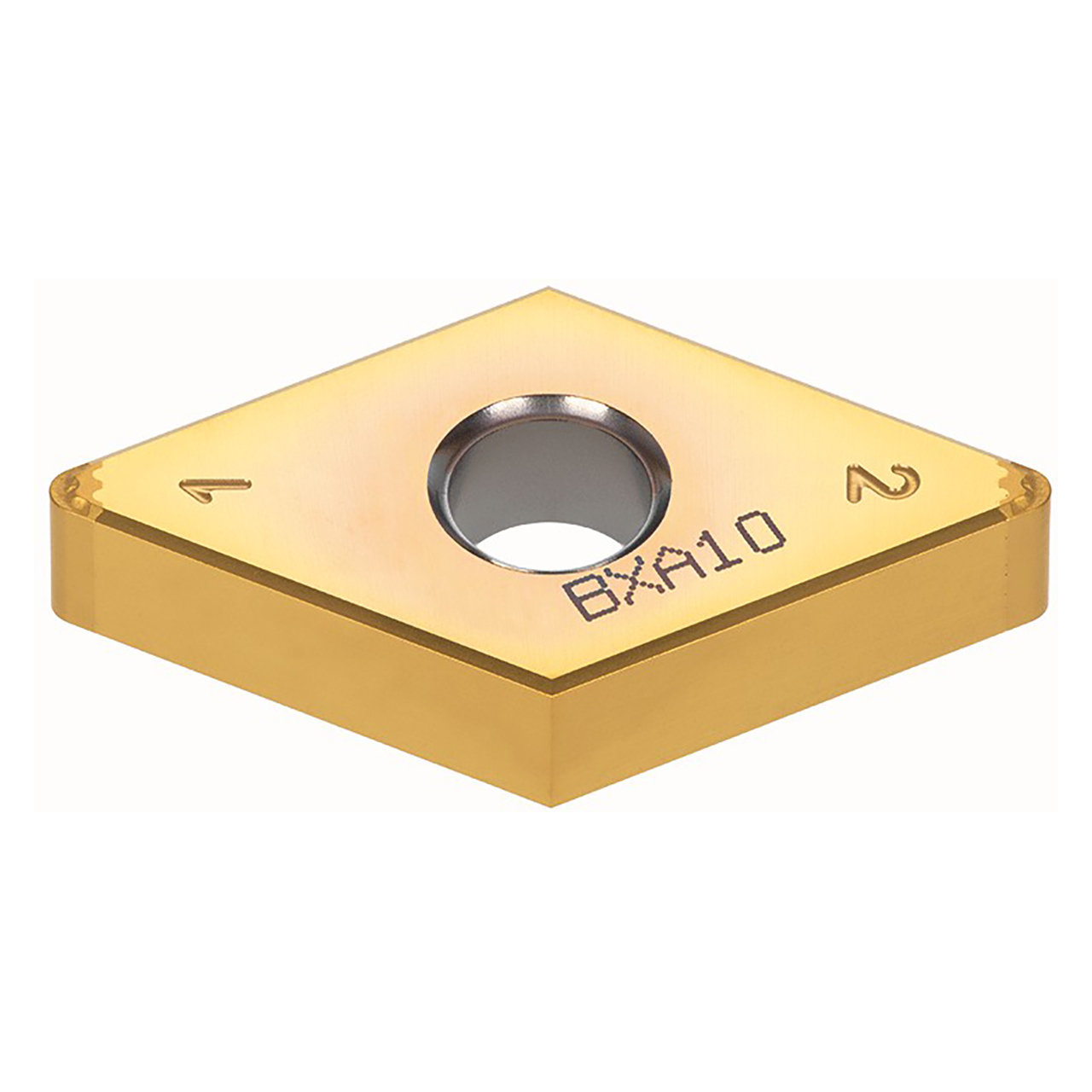

Negative relief angle, G class, 55 degree rhombic CBN insert with chipbreaker for finishing hardened steel, applied "WavyJoint" brazing technology.
| # MFG | 6843497 |
| Corner Radius (Inch) | 0.0315" |
| Cutting Edge Length (Inch) | 0.61" |
| Cutting Edge Effective Length (Inch) | 0.063" |
| Maximum Depth of Cut (Inch) | 0.0138" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0039" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Grade | BXA10 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | HS-Wavy |
| Body Material | Carbide |
