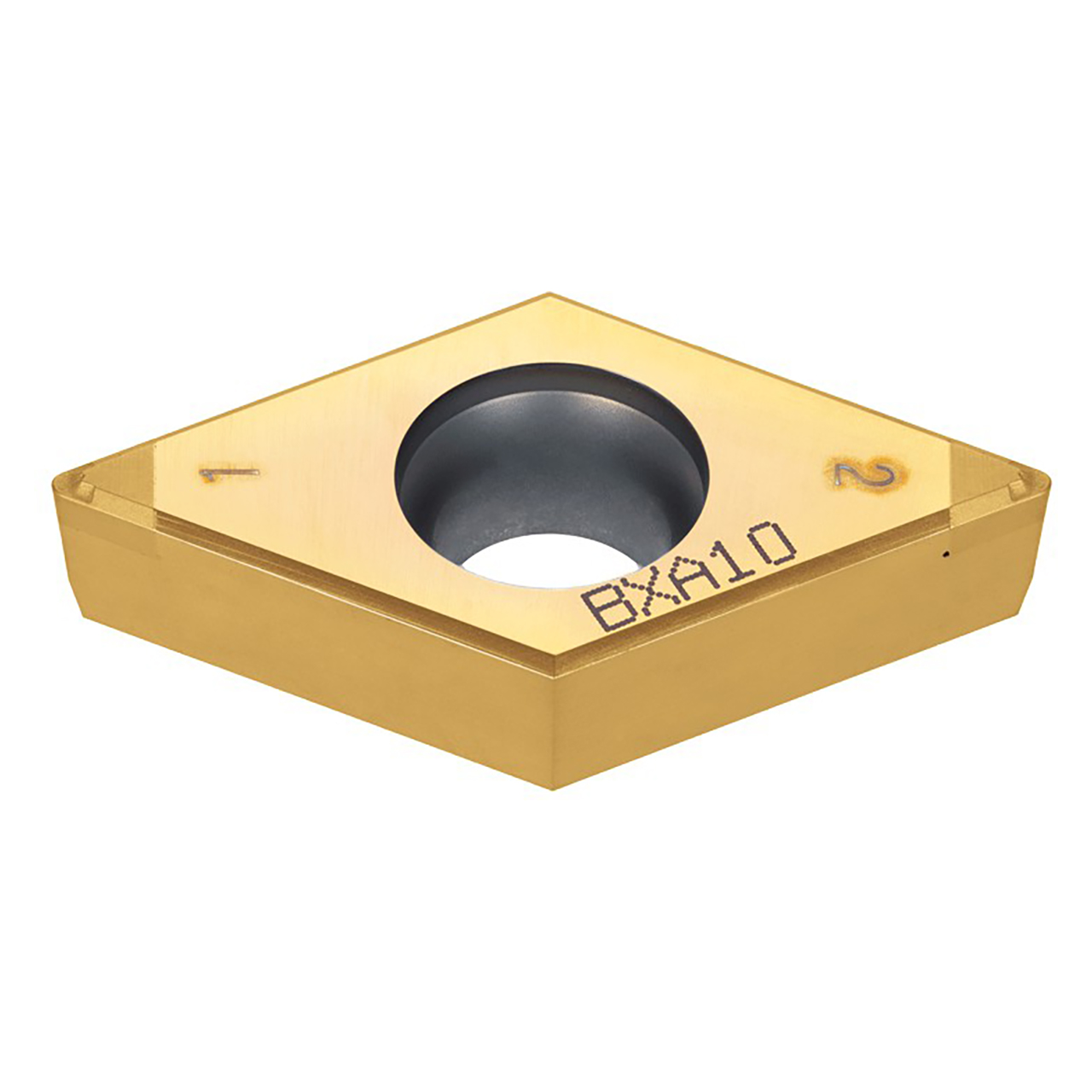

Tungaloy 6843679 | 2QP-DCGT 32.51 HS BXA10 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$116.35
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
interval quantity:
1
SKU:
23157358
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Positive 7 degree relief angle, G class, 55 degree rhombic CBN insert with chipbreaker for finishing hardened steel.


Product Specifications
# MFG6843679
Corner Radius (Inch)0.0157"
Cutting Edge Length (Inch)0.457"
Cutting Edge Effective Length (Inch)0.098"
Maximum Depth of Cut (Inch)0.0138"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.002"/rev
GradeBXA10
Tool TypeTurn Positive Inserts
Applicable MaterialHard Materials
Chip Breaker TypeHS
Major Clearance Angle7 Degree
Body MaterialCarbide
