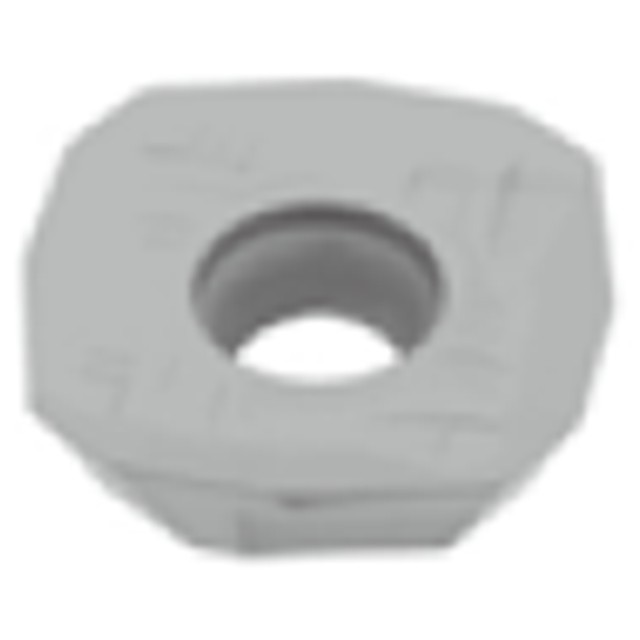

Tungaloy 6846115 | SWMT13T3AFPR-HJ AH140 0.579" Diameter x 0.157" Thickness x 0.059" Radius TiAlN Coated Carbide Milling Insert

$15.68 $13.01
(You save $2.67)
Brand:
Tungaloy
Material:
Carbide
Finish/Coating:
TiAlN
Width (Inch):
37/64"
Width (Decimal Inch):
0.5790"
Width (mm):
14.71mm
Inscribed Circle (Inch):
37/64"
Inscribed Circle (Decimal Inch):
0.5790"
Inscribed Circle (mm):
14.71mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23024158
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Applicable for super high feed milling.


Product Specifications
Manufacturer Part Number6846115
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.079"
Inscribed Circle Diameter (Inch)0.579"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.579"
Maximum Feed per Tooth0.0197"/tooth
Minimum Feed per Tooth0.0079"/tooth
Number of Cutting Edges4
Wiper Edge Length0.091"
ApplicationFace Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH140
Cutting Edge MaterialCarbide
Applicable MaterialStainless Steel
