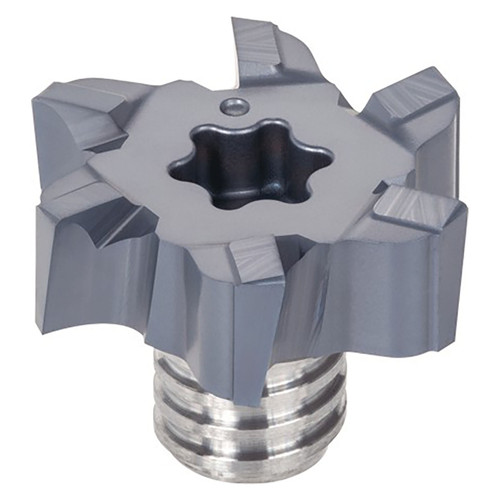

High feed, 4, 6 flutes, roughing, with coolant hole (2 items does not have coolant hole).
Product Specifications
| Manufacturer Part Number | 6848180 |
| Cutting Diameter Maximum (mm) | 12mm |
| Cutting Diameter (mm) | 12mm |
| Depth of Cut Maximum (mm) | 0.65mm |
| Functional Length (mm) | 12mm |
| Corner Radius (mm) | 0.6mm |
| Maximum Feed per Tooth (fz) | 0.54mm/tooth |
| Grade | AH750 |
| Flute Helix Angle (Degree) | 20 Degree |
| Number of Flutes | 6 |
| Tool Cutting Edge Angle (Degree) | 97 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Dovetail Endmills |
| Applicable Material | Hard Materials |
| Application | Face Milling, High Feed Milling, Profile Milling |
