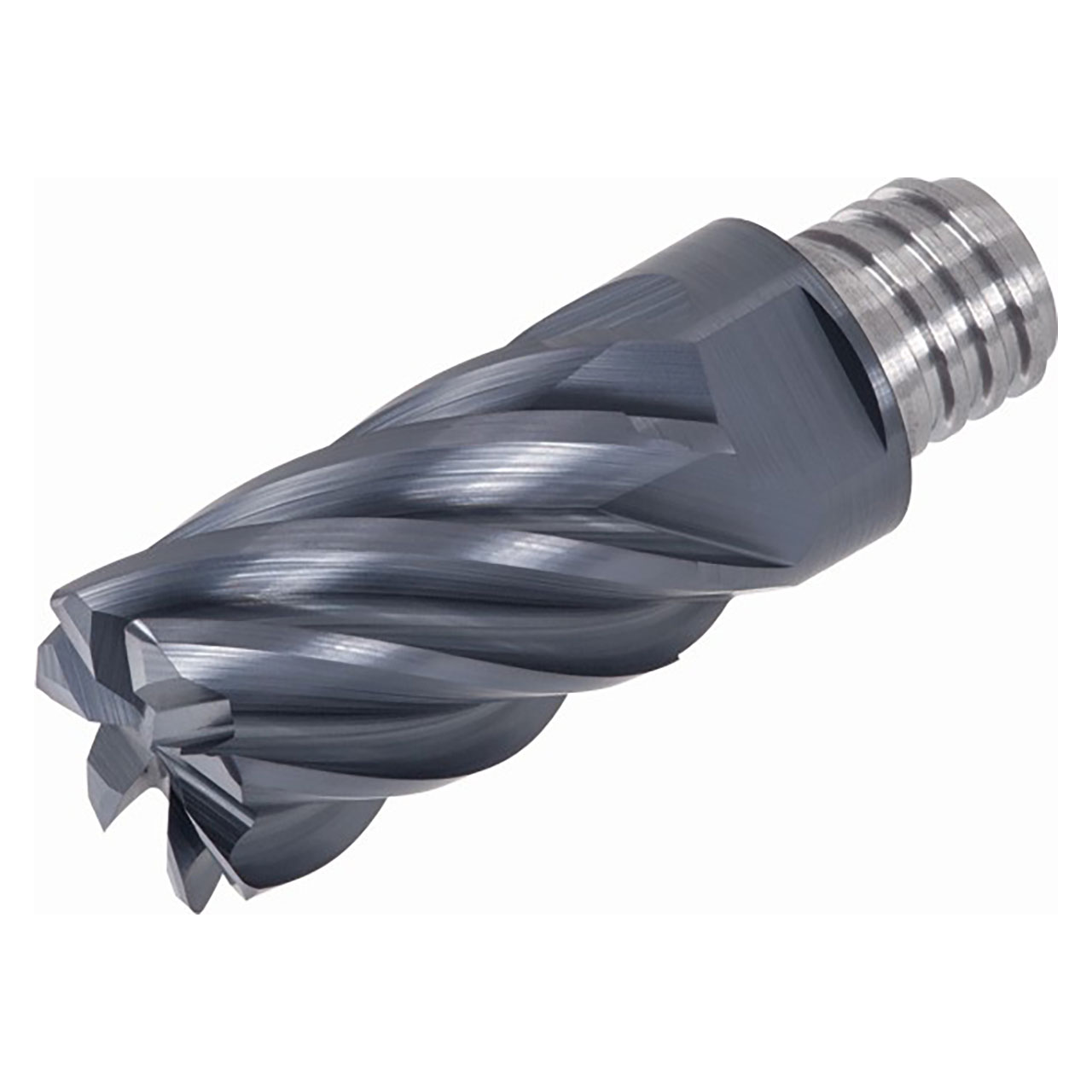

Square, 7, 9 flutes, roughing-finishing, long edge, variable helix and pitch, small width of cut.
Product Specifications
| Manufacturer Part Number | 6848341 |
| Cutting Diameter Maximum (mm) | 16mm |
| Cutting Diameter (mm) | 16mm |
| Depth of Cut Maximum (mm) | 24mm |
| Functional Length (mm) | 33.5mm |
| Corner Radius (mm) | 0.8mm |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 9 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Non Center Cutting Endmills 90 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Shoulder Milling |
