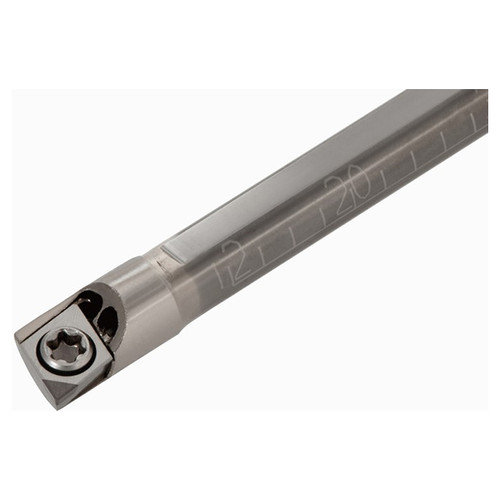

Screw-on boring bars, for position triangle insert with 11 degree clearance.
| # MFG | 6848775 |
| Connection Diameter Machine Side (mm) | 8mm |
| Functional Length (mm) | 125mm |
| Functional Width (mm) | 4mm |
| Head Length (mm) | 44.5mm |
| Minimum Bore Diameter (mm) | 8mm |
| Shank Height (mm) | 7.5mm |
| Body Material | Carbide |
| Application | For Miniature Machining, For Triangular Insert |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 5 Degree |
| Rake Angle Radial (Degree) | -10 Degree |
