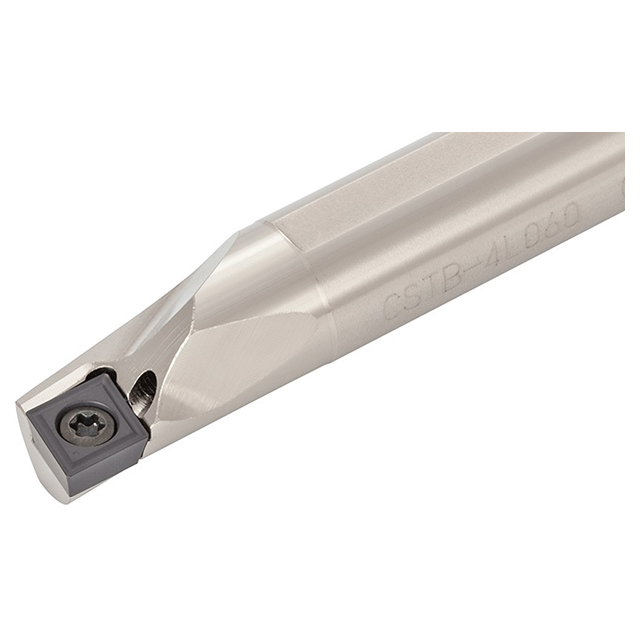

Screw-on boring bars, for position 80 degree rhombic insert with 11 degree clearance.
| # MFG | 6850444 |
| Connection Diameter Machine Side (Inch) | 3/8" |
| Functional Length (Inch) | 5" |
| Functional Width (Inch) | 0.281" |
| Head Length (Inch) | 3/4" |
| Minimum Bore Diameter (Inch) | 1/2" |
| Shank Height (Inch) | 0.35" |
| Body Material | Carbide |
| Application | For 80 Degree Rhombic Insert, For Miniature Machining |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -9 Degree |
