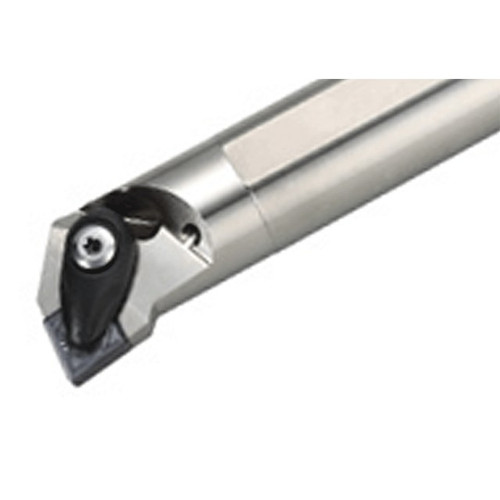

Double-clamp boring bar, for negative trigon insert.
Product Specifications
| # MFG | 6852861 |
| Connection Diameter Machine Side (mm) | 40mm |
| Functional Length (mm) | 300mm |
| Functional Width (mm) | 27mm |
| Head Length (mm) | 55mm |
| Minimum Bore Diameter (mm) | 50mm |
| Shank Height (mm) | 37mm |
| Body Material | Steel |
| Application | For 80 Degree Trigon Insert |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | -6 Degree |
| Rake Angle Radial (Degree) | -8 Degree |
