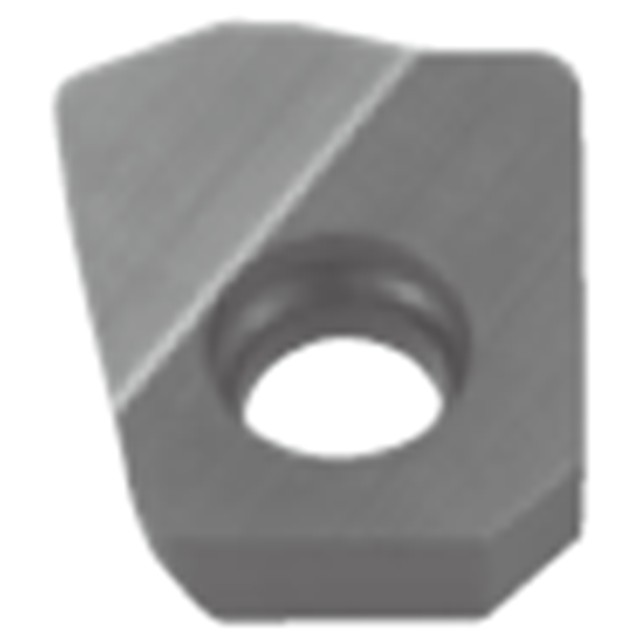

Tungaloy 6853064 | XXGT06H205EC-MJ AH730 0.098" Thickness x 0.244" Insert Length TiAlN Coated Carbide Milling Insert

$18.85 $15.65
(You save $3.20)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH730
Finish/Coating:
TiAlN
Width (Inch):
3/16"
Width (Decimal Inch):
0.1930"
Width (mm):
4.90mm
Length (Inch):
1/4"
Length (Decimal Inch):
0.2440"
Length (mm):
6.19mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0980"
Thickness (mm):
2.49mm
SKU:
23027502
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Central edge insert for general purpose.


Product Specifications
Manufacturer Part Number6853064
Depth of Cut Maximum (Inch)0.024"
Insert Length (Inch)0.244"
Insert Thickness (Inch)0.098"
Insert Width (Inch)0.193"
Number of Cutting Edges1
ApplicationFace Milling, High Feed Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH730
Cutting Edge MaterialCarbide
Applicable MaterialSteel
