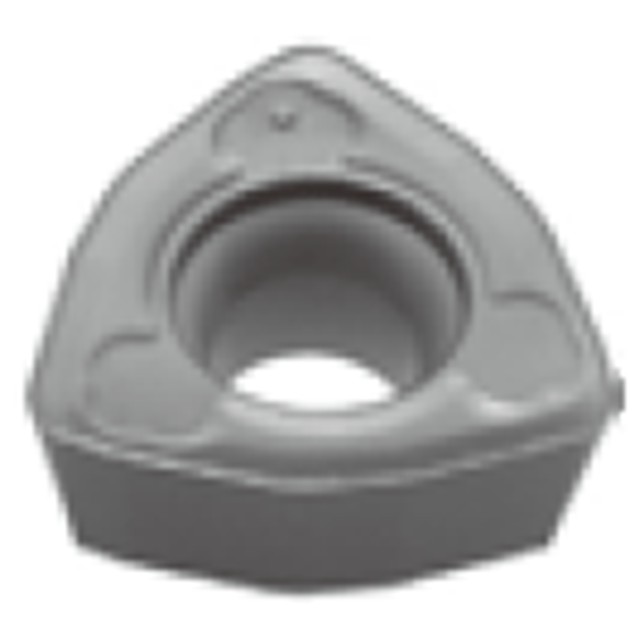

Tungaloy 6853864 | WPMT06X415ZPR-ML T3130 3/8" Diameter x 0.165" Thickness x 0.059" Radius TiCN+Al2O3+TiN Coated Carbide Milling Insert

$11.38
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3130
Finish/Coating:
TiCN+Al2O3+TiN
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1650"
Thickness (mm):
4.19mm
SKU:
23027279
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Trigon insert with ML chipbreaker with low cutting force.


Product Specifications
Manufacturer Part Number6853864
Cutting Edge Effective Length (Inch)0.236"
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.059"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.165"
Number of Cutting Edges3
ApplicationFace Milling, High Feed Milling
CoatingTiCN+Al2O3+TiN
Body MaterialCarbide
GradeT3130
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel
