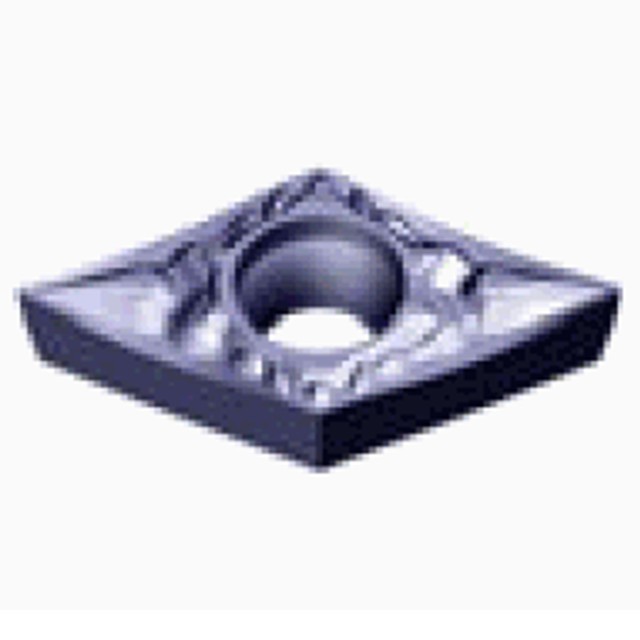

Tungaloy 6853995 | DCGT 32.50.5 FN-JS SH730 3/8" Circle Diameter x 0.156" Thickness x 0.008" Radius TiAlN Coated Carbide Indexable Turning Insert

$23.30 $16.31
(You save $6.99)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23019980
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 55 degree rhombic insert for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6853995
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.457"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0039"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.0008"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeSH730
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Hi Temp Alloys
Chip Breaker TypeJS
Major Clearance Angle7 Degree
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0080"
