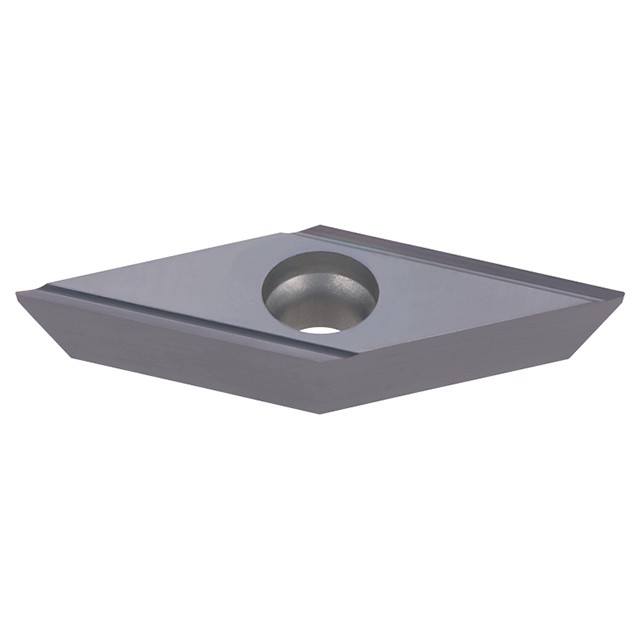

Positive 11 degree relief angle, E class, 35 degree rhombic insert, parallel type chipbreaker for profiling on small lathes.
| Manufacturer Part Number | 6856639 |
| Corner Radius (Inch) | 0.007" |
| Cutting Edge Length (Inch) | 0.441" |
| Maximum Depth of Cut (Inch) | 0.0197" |
| Fixing Hole Diameter (Inch) | 0.11" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0016"/rev |
| Minimum Depth of Cut (Inch) | 0.0031" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | SH730 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Chip Breaker Type | JPP |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
