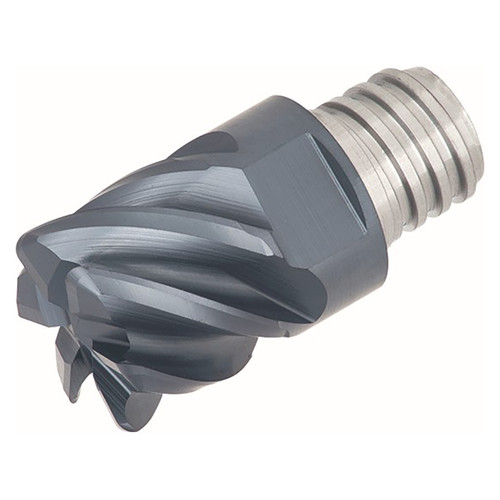

Tungaloy 6859279 | VED100L07.0R05-06S06 AH725 10.00mm Diameter x 13.00mm Functional Length x 7.00mm Depth of Cut x 0.50mm Radius TiAlN Coated Carbide Square End Mill Head

$98.15 $81.46
(You save $16.69)
interval quantity:
2
SKU:
23137522
UPC:
Weight:
1.23 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

Square, 6 flutes, roughing-finishing, small width of cut.


Product Specifications
Manufacturer Part Number6859279
Cutting Diameter Maximum (mm)10mm
Cutting Diameter (mm)10mm
Depth of Cut Maximum (mm)7mm
Functional Length (mm)13mm
Corner Radius (mm)0.5mm
Maximum Feed per Tooth (fz)0.12mm/tooth
GradeAH725
Flute Helix Angle (Degree)30 Degree
Number of Flutes6
Tool Cutting Edge Angle (Degree)90 Degree
Body MaterialCarbide
CoatingTiAlN
Cutting Edge MaterialCarbide
Tool TypeSolid Carbide Non Center Cutting Endmills 90
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
ApplicationShoulder Milling
