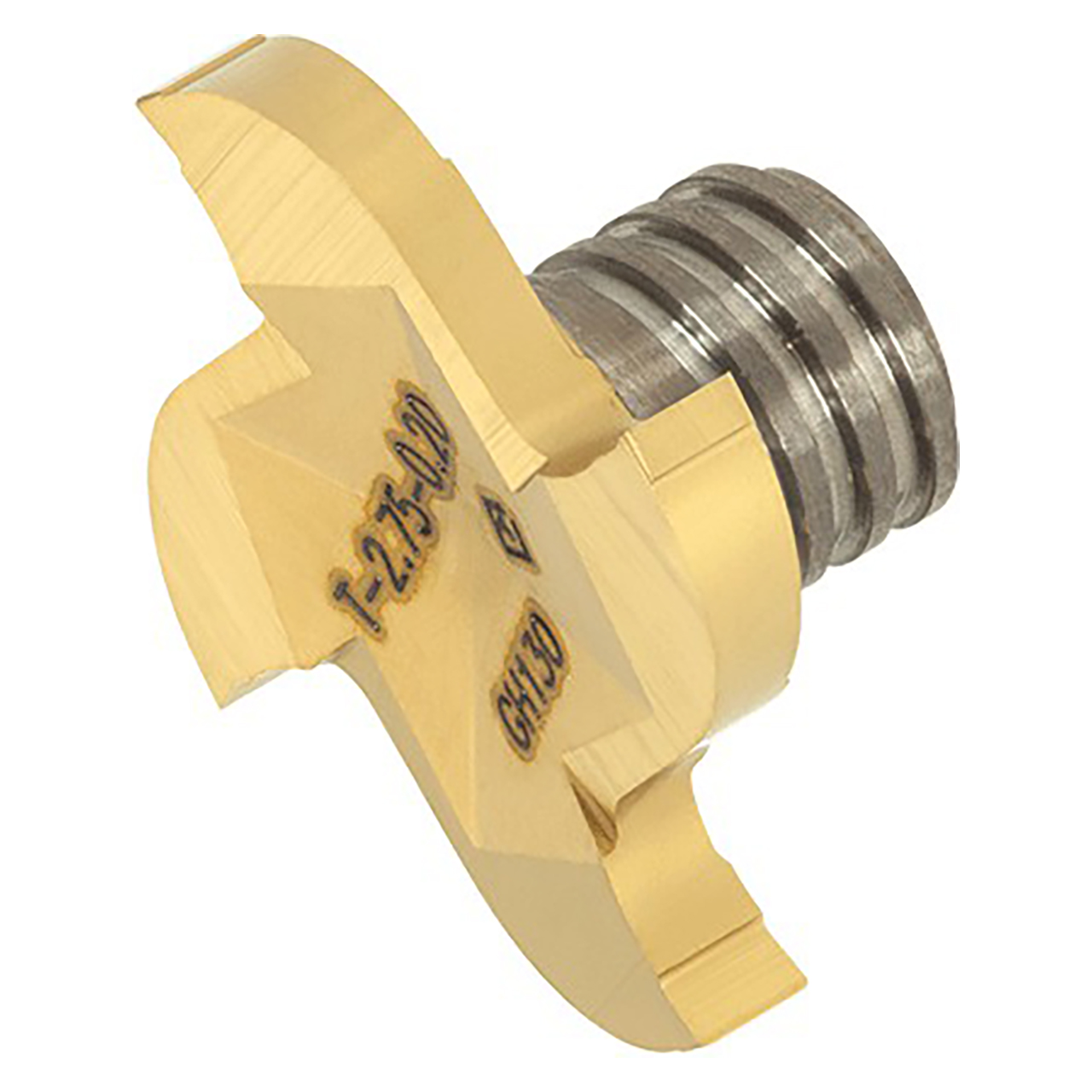

Name: Tungaloy 6859348 | VST217W3.25R020-4S08 GH130 21.70mm Diameter x 3.40mm Functional Length x 3.25mm Depth of Cut x 0.20mm Radius TiCN Coated Carbide T-Slot Replaceable Milling Tip
Brand: Tungaloy
SKU: 23026745
Availability: InStock

Tungaloy 6859348 | VST217W3.25R020-4S08 GH130 21.70mm Diameter x 3.40mm Functional Length x 3.25mm Depth of Cut x 0.20mm Radius TiCN Coated Carbide T-Slot Replaceable Milling Tip

$65.90 $54.70

(You save $11.20)

Brand:

Tungaloy

Material:

Carbide

Cutting Diameter (Inch):

55/64"

Cutting Diameter (Decimal Inch):

0.8500"

Cutting Diameter (mm):

21.70mm

Number of Flutes:

Finish/Coating:

TiCN

interval quantity:

SKU:

23026745

UPC:

Weight:

1.23 LBS

Minimum Purchase:

2 units

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Slotting, 4, 6 flutes, for slotting.

Product Specifications

Manufacturer Part Number	6859348
Cutting Diameter Maximum (mm)	21.7mm
Cutting Diameter (mm)	21.7mm
Depth of Cut Maximum (mm)	3.25mm
Functional Length (mm)	3.4mm
Corner Radius (mm)	0.2mm
Grade	GH130
Flute Helix Angle (Degree)	0 Degree
Number of Flutes	4
Tool Cutting Edge Angle (Degree)	90 Degree
Body Material	Carbide
Coating	TiCN
Cutting Edge Material	Carbide
Tool Type	Solid "T" Slot Cutters
Applicable Material	Steel, Stainless Steel, Cast Iron
Application	Slot Milling

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
