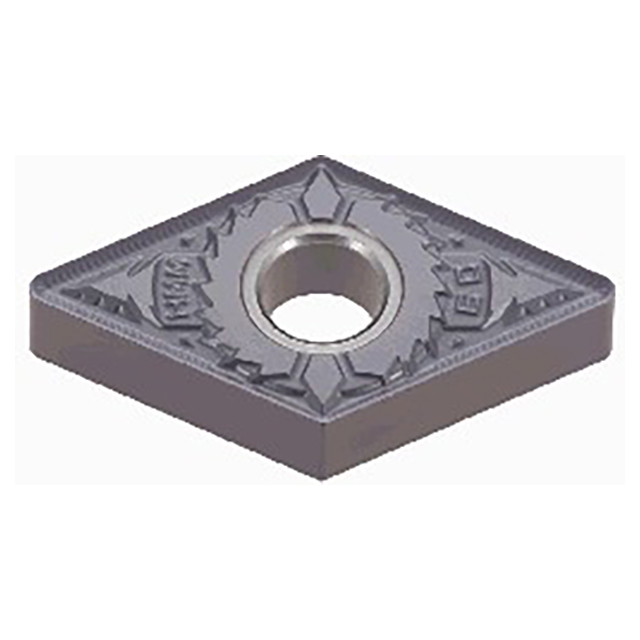

Negative relief angle, M class, 55 degree rhombic insert, for medium cutting of super alloy.
| # MFG | 6859491 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 0.61" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0197" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Coating | AlTiN |
| Cutting Edge Material | Carbide |
| Grade | AH905 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Hi Temp Alloys |
| Chip Breaker Type | HMM |
| Body Material | Carbide |
