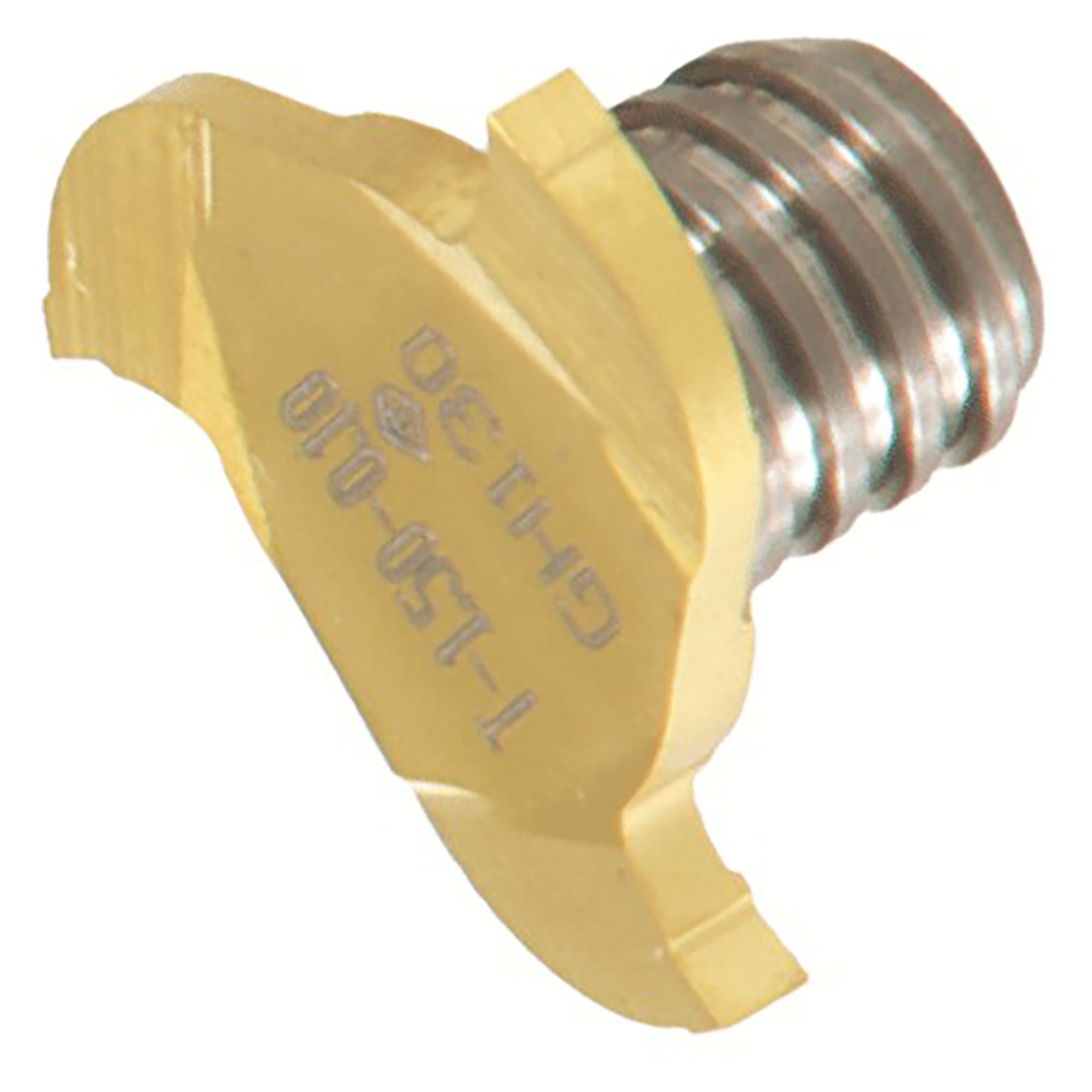

Name: Tungaloy 6859513 | VST177W2.50R020-3S06 GH130 17.70mm Diameter x 2.65mm Functional Length x 2.50mm Depth of Cut x 0.20mm Radius TiCN Coated Carbide Slotting Replaceable Milling Tip
Brand: Tungaloy
SKU: 23137716
Availability: InStock

Tungaloy 6859513 | VST177W2.50R020-3S06 GH130 17.70mm Diameter x 2.65mm Functional Length x 2.50mm Depth of Cut x 0.20mm Radius TiCN Coated Carbide Slotting Replaceable Milling Tip

$55.90 $46.40

(You save $9.50)

interval quantity:

SKU:

23137716

UPC:

Weight:

1.23 LBS

Minimum Purchase:

2 units

Shipping:

Free Shipping

Features
Reviews
Other Details

Slotting, 3 flutes, for slotting.

Product Specifications

Manufacturer Part Number	6859513
Cutting Diameter Maximum (mm)	17.7mm
Cutting Diameter (mm)	17.7mm
Depth of Cut Maximum (mm)	2.5mm
Functional Length (mm)	2.65mm
Corner Radius (mm)	0.2mm
Grade	GH130
Flute Helix Angle (Degree)	0 Degree
Number of Flutes	3
Tool Cutting Edge Angle (Degree)	90 Degree
Body Material	Carbide
Coating	TiCN
Cutting Edge Material	Carbide
Tool Type	Solid "T" Slot Cutters
Applicable Material	Steel, Stainless Steel, Cast Iron
Application	Slot Milling
